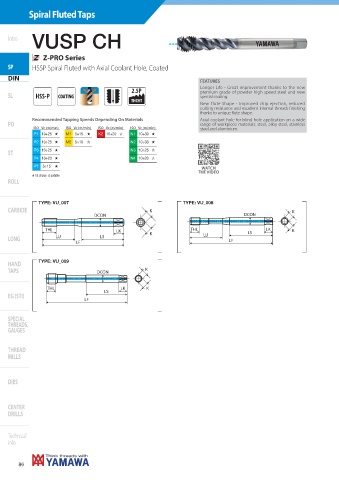

Page 88 - Yamawa_European_Catalogue_YEU23

Spiral Fluted Taps

VUSP CH
Intro

Z-PRO Series
SP HSSP Spiral Fluted with Axial Coolant Hole, Coated

DIN
FEATURES
Longer Life - Great improvement thanks to the new
2.5P premium grade of powder high speed steel and new
SL HSS-P COATING special coating.
THCHT
New Flute Shape - Improved chip ejection, reduced
cutting resistance and excellent internal threads finishing
thanks to unique flute shape.
Recommended Tapping Speeds Depending On Materials Axial coolant hole for blind hole application on a wide
PO range of workpiece materials: steel, alloy steel, stainless
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min) steel and aluminium.
P1 10÷25 + M1 5÷15 + K2 10÷20 , N1 10÷30 +
P2 10÷25 + M2 5÷10 , N2 10÷30 +
P3 10÷25 + N3 10÷25 ,
ST
P4 10÷20 + N4 10÷20 ,
P7 5÷15 +
WATCH
THE VIDEO
+ 1st choice , suitable
ROLL
DIN-VUSP CH
TYPE: VU_007 TYPE: VU_008
CARBIDE K K
DCON DCON

THL LK K THL LS LK K
LONG LU LS LU LF
LF

HAND TYPE: VU_009
TAPS DCON K

THL LK K
LS
EG (STI)
LF

SPECIAL
THREADS,
GAUGES

THREAD
MILLS

DIES

CENTER
DRILLS

Technical
info

86
