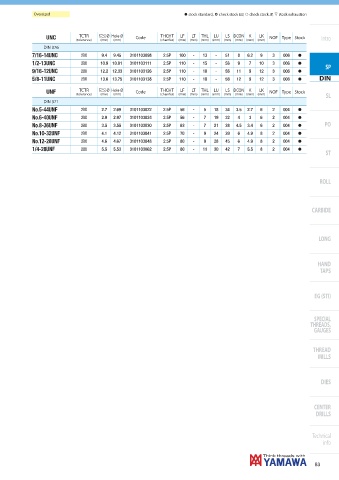

Page 85 - Yamawa_European_Catalogue_YEU23

Oversized h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø THCHT LF LT THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
UNC Code NOF Type Stock Intro
DIN 376
2BX 9.4 9.45 3101103098 2.5P 100 - 13 - 51 8 6.2 9 3 006 h
7/16-14UNC
2BX 10.9 10.91 3101103111 2.5P 110 - 15 - 56 9 7 10 3 006 h
SP
1/2-13UNC
2BX 12.2 12.33 3101103126 2.5P 110 - 18 - 56 11 9 12 3 006 h
9/16-12UNC
2BX 13.6 13.75 3101103138 2.5P 110 - 18 - 56 12 9 12 3 006 h DIN
5/8-11UNC
TCTR Ø Hole Ø THCHT LF LT THL LU LS DCON K LK
SL
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
UNF Code NOF Type Stock
DIN 371
2BX 2.7 2.69 3101103022 2.5P 56 - 5 18 34 3.5 2.7 6 2 004 h
No.5-44UNF
2BX 2.9 2.97 3101103024 2.5P 56 - 7 19 32 4 3 6 2 004 h
No.6-40UNF
2BX 3.5 3.55 3101103030 2.5P 63 - 7 21 38 4.5 3.4 6 2 004 h PO
No.8-36UNF
2BX 4.1 4.12 3101103041 2.5P 70 - 9 24 39 6 4.9 8 2 004 h
No.10-32UNF
2BX 4.6 4.67 3101103048 2.5P 80 - 9 28 45 6 4.9 8 2 004 h
No.12-28UNF
2BX 5.5 5.53 3101103062 2.5P 80 - 11 30 42 7 5.5 8 2 004 h
