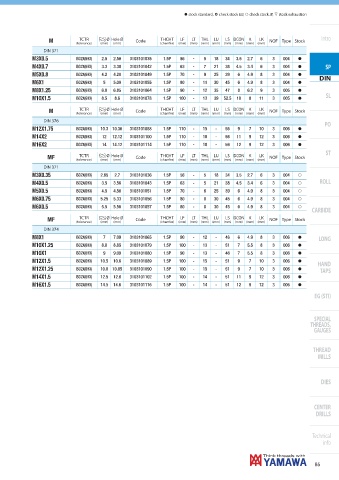

Page 87 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 371
ISO2X(6HX) 2.5 2.56 3103101035 1.5P 56 - 5 18 34 3.5 2.7 6 3 004 h
M3X0.5
ISO2X(6HX) 3.3 3.38 3103101042 1.5P 63 - 7 21 38 4.5 3.4 6 3 004 h SP
M4X0.7
ISO2X(6HX) 4.2 4.28 3103101049 1.5P 70 - 9 25 39 6 4.9 8 3 004 h
DIN
M5X0.8
ISO2X(6HX) 5 5.09 3103101055 1.5P 80 - 11 30 45 6 4.9 8 3 004 h
M6X1
ISO2X(6HX) 6.8 6.85 3103101064 1.5P 90 - 12 35 47 8 6.2 9 3 005 h
M8X1.25
SL
ISO2X(6HX) 8.5 8.6 3103101078 1.5P 100 - 13 39 52.5 10 8 11 3 005 h
M10X1.5
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 376
PO
ISO2X(6HX) 10.3 10.36 3103101088 1.5P 110 - 15 - 56 9 7 10 3 006 h
M12X1.75
ISO2X(6HX) 12 12.12 3103101100 1.5P 110 - 18 - 56 11 9 12 3 006 h
M14X2
ISO2X(6HX) 14 14.12 3103101114 1.5P 110 - 18 - 56 12 9 12 3 006 h
M16X2
ST
TCTR Ø Hole Ø THCHT LF LT THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
MF Code NOF Type Stock
DIN 371
ISO2X(6HX) 2.65 2.7 3103101036 1.5P 56 - 5 18 34 3.5 2.7 6 3 004 f
M3X0.35
ISO2X(6HX) 3.5 3.56 3103101043 1.5P 63 - 5 21 38 4.5 3.4 6 3 004 f ROLL
M4X0.5
ISO2X(6HX) 4.5 4.56 3103101051 1.5P 70 - 6 25 39 6 4.9 8 3 004 f
M5X0.5
ISO2X(6HX) 5.25 5.33 3103101056 1.5P 80 - 8 30 45 6 4.9 8 3 004 f
M6X0.75
ISO2X(6HX) 5.5 5.56 3103101057 1.5P 80 - 8 30 45 6 4.9 8 3 004 f
CARBIDE
M6X0.5
TCTR Ø Hole Ø THCHT LF LT THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
MF Code NOF Type Stock
DIN 374
ISO2X(6HX) 7 7.09 3103101065 1.5P 90 - 12 - 46 6 4.9 8 3 006 h
M8X1 LONG
ISO2X(6HX) 8.8 8.85 3103101079 1.5P 100 - 13 - 51 7 5.5 8 3 006 h
M10X1.25
ISO2X(6HX) 9 9.09 3103101080 1.5P 90 - 13 - 46 7 5.5 8 3 006 h
M10X1
ISO2X(6HX) 10.5 10.6 3103101089 1.5P 100 - 15 - 51 9 7 10 3 006 h
HAND
M12X1.5
ISO2X(6HX) 10.8 10.85 3103101090 1.5P 100 - 15 - 51 9 7 10 3 006 h
M12X1.25 TAPS
ISO2X(6HX) 12.5 12.6 3103101102 1.5P 100 - 14 - 51 11 9 12 3 006 h
M14X1.5
ISO2X(6HX) 14.5 14.6 3103101116 1.5P 100 - 14 - 51 12 9 12 3 006 h
M16X1.5
