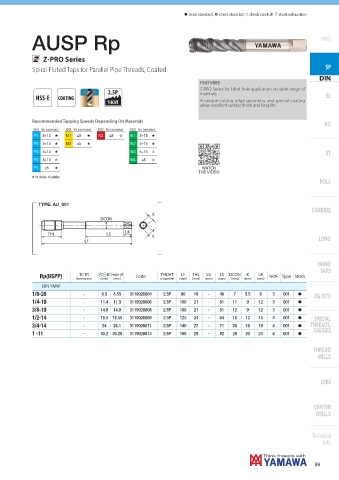

Page 91 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

AUSP Rp Intro

Z-PRO Series

Spiral Fluted Taps for Parallel Pipe Threads, Coated SP
DIN
FEATURES
Z-PRO Series for blind hole application on wide range of
2.5P materials
HSS-E COATING SL
THCHT A unique cutting edge geometry and special coating
allow excellent surface finish and long life.

Recommended Tapping Speeds Depending On Materials
PO
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
P1 5÷10 + M1 ≤5 + K2 ≤5 , N1 5÷15 +
P2 5÷10 + M2 ≤5 + N2 5÷15 +
P3 5÷10 + N3 5÷15 , ST
P4 5÷10 , N4 ≤5 ,
P7 ≤5 + WATCH
THE VIDEO
+ 1st choice , suitable
ROLL

DIN-AUSP Rp
TYPE: AU_001
CARBIDE
K
DCON

THL LS LK K
LF LONG

HAND
TAPS
TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock
Rp(BSPP) (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN YMW
- 8.5 8.55 3119026004 2.5P 90 19 - 46 7 5.5 8 3 001 h
1/8-28 EG (STI)
- 11.4 11.5 3119026006 2.5P 100 21 - 51 11 9 12 3 001 h
1/4-19
- 14.8 14.9 3119026008 2.5P 100 21 - 51 12 9 12 3 001 h
3/8-19
- 18.5 18.55 3119026009 2.5P 125 24 - 64 16 12 15 4 001 h
1/2-14 SPECIAL
- 24 24.1 3119026011 2.5P 140 27 - 71 20 16 19 4 001 h THREADS,
3/4-14
GAUGES
- 30.2 30.25 3119026013 2.5P 160 29 - 82 25 20 23 4 001 h
1 -11
THREAD
MILLS

DIES

CENTER
DRILLS

Technical
info

89
