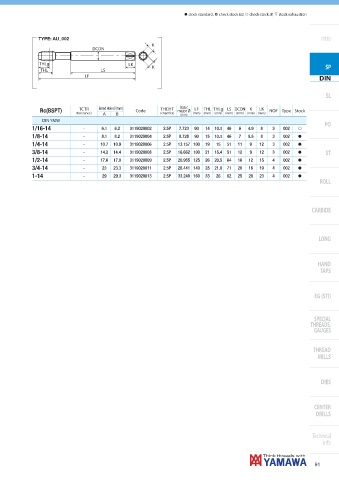

Page 93 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TYPE: AU_002 Intro
K
DCON

SP
THLg
LK
K
THL LS
DIN
LF
SL

TCTR Bored Hole Ø (mm) THCHT Basic LF THL THLg LS DCON K LK
(tolerance) A B (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
Rc(BSPT) Code major Ø NOF Type Stock
DIN YMW
PO
- 6.1 6.2 3119020002 2.5P 7.723 90 14 10.1 46 6 4.9 8 3 002 f
1/16-14
- 8.1 8.2 3119020004 2.5P 9.728 90 15 10.1 46 7 5.5 8 3 002 h
1/8-14
- 10.7 10.9 3119020006 2.5P 13.157 100 19 15 51 11 9 12 3 002 h
1/4-14
- 14.2 14.4 3119020008 2.5P 16.662 100 21 15.4 51 12 9 12 3 002 h ST
3/8-14
- 17.6 17.9 3119020009 2.5P 20.955 125 26 20.5 64 16 12 15 4 002 h
1/2-14
- 23 23.3 3119020011 2.5P 26.441 140 28 21.8 71 20 16 19 4 002 h
3/4-14
- 29 29.3 3119020013 2.5P 33.249 160 33 26 82 25 20 23 4 002 h
1-14
