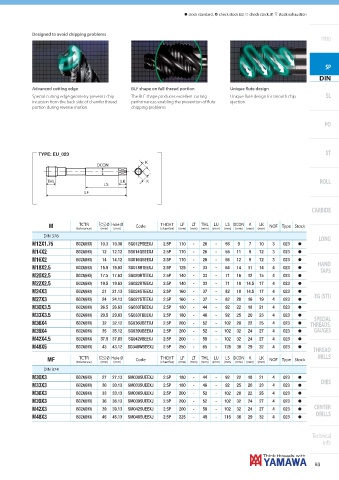

Page 95 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

Designed to avoid chipping problems
Intro

SP

DIN
Advanced cutting edge BLF shape on full thread portion Unique flute design
Special cutting edge geometry prevents chip The BLF shape produces excellent cutting Unique flute design for smooth chip SL
incursion from the back side of chamfer thread performances enabling the prevention of flute ejection
portion during reverse motion chipping problems

PO

TYPE: EU_023 ST
K
DCON

THL LK K ROLL
LS
LF

CARBIDE

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 376
LONG
ISO2X(6HX) 10.3 10.36 SG012PSEEXJ 2.5P 110 - 26 - 56 9 7 10 3 023 h
M12X1.75
ISO2X(6HX) 12 12.12 SG014QSEEXJ 2.5P 110 - 26 - 56 11 9 12 3 023 h
M14X2
ISO2X(6HX) 14 14.12 SG016QSEEXJ 2.5P 110 - 26 - 56 12 9 12 3 023 h
HAND
M16X2
ISO2X(6HX) 15.5 15.63 SG018RTEEXJ 2.5P 125 - 33 - 64 14 11 14 4 023 h
TAPS
M18X2.5
ISO2X(6HX) 17.5 17.63 SG020RTEEXJ 2.5P 140 - 33 - 71 16 12 15 4 023 h
M20X2.5
ISO2X(6HX) 19.5 19.63 SG022RTEEXJ 2.5P 140 - 33 - 71 18 14.5 17 4 023 h
M22X2.5
ISO2X(6HX) 21 21.13 SG024STEEXJ 2.5P 160 - 37 - 82 18 14.5 17 4 023 h
M24X3
EG (STI)
ISO2X(6HX) 24 24.13 SG027STEEXJ 2.5P 160 - 37 - 82 20 16 19 4 023 h
M27X3
ISO2X(6HX) 26.5 26.63 SG030TBEEXJ 2.5P 180 - 44 - 92 22 18 21 4 023 h
M30X3.5
ISO2X(6HX) 29.5 29.63 SG033TBEEXJ 2.5P 180 - 46 - 92 25 20 23 4 023 h
SPECIAL
M33X3.5
ISO2X(6HX) 32 32.12 SG036UBEEXJ 2.5P 200 - 52 - 102 28 22 25 4 023 h
M36X4 THREADS,
ISO2X(6HX) 35 35.12 SG039UBEEXJ 2.5P 200 - 52 - 102 32 24 27 4 023 h GAUGES
M39X4
ISO2X(6HX) 37.5 37.63 SG042VBEEXJ 2.5P 200 - 59 - 102 32 24 27 4 023 h
M42X4.5
ISO2X(6HX) 43 43.12 SG048WBEEXJ 2.5P 250 - 65 - 128 36 29 32 4 023 h
THREAD
M48X5
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock MILLS
MF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 374
ISO2X(6HX) 27 27.13 SM030SUEEXJ 2.5P 180 - 44 - 92 22 18 21 4 023 h
DIES
M30X3
ISO2X(6HX) 30 30.13 SM033SUEEXJ 2.5P 180 - 46 - 92 25 20 23 4 023 h
M33X3
ISO2X(6HX) 33 33.13 SM036SUEEXJ 2.5P 200 - 52 - 102 28 22 25 4 023 h
M36X3
ISO2X(6HX) 36 36.13 SM039SUEEXJ 2.5P 200 - 52 - 102 32 24 27 4 023 h
M39X3
ISO2X(6HX) 39 39.13 SM042SUEEXJ 2.5P 200 - 59 - 102 32 24 27 4 023 h CENTER
M42X3
DRILLS
ISO2X(6HX) 45 45.13 SM048SUEEXJ 2.5P 225 - 49 - 115 36 29 32 4 023 h
M48X3
