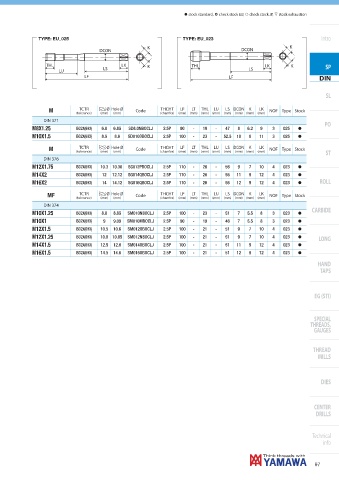

Page 99 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TYPE: EU_025 TYPE: EU_023 Intro
K K
DCON DCON

THL LK K THL LK K SP
LU LS LS
LF LF DIN

SL

TCTR Ø Hole Ø THCHT LF LT THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
M Code NOF Type Stock
DIN 371
PO
ISO2X(6HX) 6.8 6.85 SD8.0NBOCLJ 2.5P 90 - 19 - 47 8 6.2 9 3 025 h
M8X1.25
ISO2X(6HX) 8.5 8.6 SD010OBOCLJ 2.5P 100 - 23 - 52.5 10 8 11 3 025 h
M10X1.5
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
ST
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 376
ISO2X(6HX) 10.3 10.36 SG012PBOCLJ 2.5P 110 - 26 - 56 9 7 10 4 023 h
M12X1.75
ISO2X(6HX) 12 12.12 SG014QBOCLJ 2.5P 110 - 26 - 56 11 9 12 4 023 h
M14X2
ISO2X(6HX) 14 14.12 SG016QBOCLJ 2.5P 110 - 26 - 56 12 9 12 4 023 h ROLL
M16X2
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
MF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 374
CARBIDE
ISO2X(6HX) 8.8 8.85 SM010NBOCLJ 2.5P 100 - 23 - 51 7 5.5 8 3 023 h
M10X1.25
ISO2X(6HX) 9 9.09 SM010MBOCLJ 2.5P 90 - 19 - 46 7 5.5 8 3 023 h
M10X1
ISO2X(6HX) 10.5 10.6 SM012OBOCLJ 2.5P 100 - 21 - 51 9 7 10 4 023 h
M12X1.5
ISO2X(6HX) 10.8 10.85 SM012NBOCLJ 2.5P 100 - 21 - 51 9 7 10 4 023 h
M12X1.25 LONG
ISO2X(6HX) 12.5 12.6 SM014OBOCLJ 2.5P 100 - 21 - 51 11 9 12 4 023 h
M14X1.5
ISO2X(6HX) 14.5 14.6 SM016OBOCLJ 2.5P 100 - 21 - 51 12 9 12 4 023 h
M16X1.5
