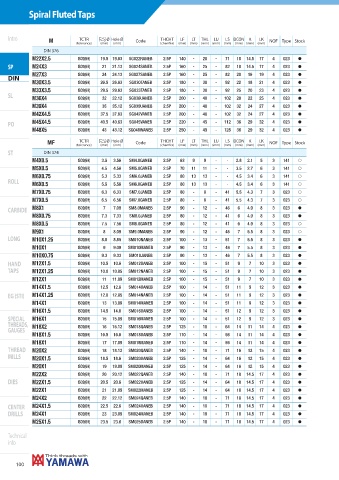

Page 102 - Yamawa_European_Catalogue_YEU23
P. 102
Spiral Fluted Taps
Intro TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 376
ISO2(6H) 19.5 19.63 SG022RANEB 2.5P 140 - 20 - 71 18 14.5 17 4 023 h
M22X2.5
SP M24X3 ISO2(6H) 21 21.13 SG024SANEB 2.5P 160 - 25 - 82 18 14.5 17 4 023 h
ISO2(6H) 24 24.13 SG027SANEB 2.5P 160 - 25 - 82 20 16 19 4 023 h
DIN M27X3
ISO2(6H) 26.5 26.63 SG030TANEB 2.5P 180 - 30 - 92 22 18 21 4 023 h
M30X3.5
ISO2(6H) 29.5 29.63 SG033TANEB 2.5P 180 - 30 - 92 25 20 23 4 023 h
M33X3.5
SL
M36X4 ISO2(6H) 32 32.12 SG036UANEB 2.5P 200 - 40 - 102 28 22 25 4 023 h
ISO2(6H) 35 35.12 SG039UANEB 2.5P 200 - 40 - 102 32 24 27 4 023 h
M39X4
ISO2(6H) 37.5 37.63 SG042VANEB 2.5P 200 - 40 - 102 32 24 27 4 023 h
M42X4.5
PO M45X4.5 ISO2(6H) 40.5 40.63 SG045VANEB 2.5P 220 - 45 - 112 36 29 32 4 023 h
ISO2(6H) 43 43.12 SG048WANEB 2.5P 250 - 45 - 128 36 29 32 4 023 h
M48X5
TCTR Ø Hole Ø THCHT LF LT THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
MF Code NOF Type Stock
ST DIN 374
ISO2(6H) 3.5 3.56 SM4.0GANEB 2.5P 63 9 9 - - 2.8 2.1 5 3 141 f
M4X0.5
ISO2(6H) 4.5 4.56 SM5.0GANEB 2.5P 70 11 11 - - 3.5 2.7 6 3 141 f
M5X0.5
ISO2(6H) 5.3 5.33 SM6.0JANEB 2.5P 80 13 13 - - 4.5 3.4 6 3 141 f
M6X0.75
ROLL
M6X0.5 ISO2(6H) 5.5 5.56 SM6.0GANEB 2.5P 80 13 13 - - 4.5 3.4 6 3 141 f
ISO2(6H) 6.3 6.33 SM7.0JANEB 2.5P 80 - 8 - 41 5.5 4.3 7 3 023 f
M7X0.75
ISO2(6H) 6.5 6.56 SM7.0GANEB 2.5P 80 - 8 - 41 5.5 4.3 7 3 023 f
M7X0.5
CARBIDE M8X1 ISO2(6H) 7 7.09 SM8.0MANEB 2.5P 90 - 12 - 46 6 4.9 8 3 023 h
ISO2(6H) 7.3 7.33 SM8.0JANEB 2.5P 80 - 12 - 41 6 4.9 8 3 023 h
M8X0.75
ISO2(6H) 7.5 7.56 SM8.0GANEB 2.5P 80 - 12 - 41 6 4.9 8 3 023 f
M8X0.5
ISO2(6H) 8 8.09 SM9.0MANEB 2.5P 90 - 12 - 46 7 5.5 8 3 023 f
M9X1
LONG ISO2(6H) 8.8 8.85 SM010NANEB 2.5P 100 - 13 - 51 7 5.5 8 3 023 h
M10X1.25
ISO2(6H) 9 9.09 SM010MANEB 2.5P 90 - 13 - 46 7 5.5 8 3 023 h
M10X1
ISO2(6H) 9.3 9.33 SM010JANEB 2.5P 90 - 13 - 46 7 5.5 8 3 023 h
M10X0.75
HAND M12X1.5 ISO2(6H) 10.5 10.6 SM012OANEB 2.5P 100 - 15 - 51 9 7 10 3 023 h
TAPS M12X1.25 ISO2(6H) 10.8 10.85 SM012NANEB 2.5P 100 - 15 - 51 9 7 10 3 023 h
ISO2(6H) 11 11.09 SM012MANEB 2.5P 100 - 15 - 51 9 7 10 3 023 h
M12X1
ISO2(6H) 12.5 12.6 SM014OANEB 2.5P 100 - 14 - 51 11 9 12 3 023 h
M14X1.5
EG (STI) M14X1.25 ISO2(6H) 12.8 12.85 SM014NANEB 2.5P 100 - 14 - 51 11 9 12 3 023 h
ISO2(6H) 13 13.09 SM014MANEB 2.5P 100 - 14 - 51 11 9 12 3 023 h
M14X1
ISO2(6H) 14.5 14.6 SM016OANEB 2.5P 100 - 14 - 51 12 9 12 3 023 h
M16X1.5
SPECIAL M16X1 ISO2(6H) 15 15.09 SM016MANEB 2.5P 100 - 14 - 51 12 9 12 3 023 h
THREADS, ISO2(6H) 16 16.12 SM018QANEB 2.5P 125 - 18 - 64 14 11 14 4 023 h
GAUGES M18X2
ISO2(6H) 16.5 16.6 SM018OANEB 2.5P 110 - 14 - 56 14 11 14 4 023 h
M18X1.5
ISO2(6H) 17 17.09 SM018MANEB 2.5P 110 - 14 - 56 14 11 14 4 023 h
M18X1
THREAD ISO2(6H) 18 18.12 SM020QANEB 2.5P 140 - 18 - 71 16 12 15 4 023 h
M20X2
MILLS ISO2(6H) 18.5 18.6 SM020OANEB 2.5P 125 - 14 - 64 16 12 15 4 023 h
M20X1.5
ISO2(6H) 19 19.09 SM020MANEB 2.5P 125 - 14 - 64 16 12 15 4 023 h
M20X1
ISO2(6H) 20 20.12 SM022QANEB 2.5P 140 - 18 - 71 18 14.5 17 4 023 h
M22X2
DIES M22X1.5 ISO2(6H) 20.5 20.6 SM022OANEB 2.5P 125 - 14 - 64 18 14.5 17 4 023 h
ISO2(6H) 21 21.09 SM022MANEB 2.5P 125 - 14 - 64 18 14.5 17 4 023 h
M22X1
ISO2(6H) 22 22.12 SM024QANEB 2.5P 140 - 18 - 71 18 14.5 17 4 023 h
M24X2
CENTER M24X1.5 ISO2(6H) 22.5 22.6 SM024OANEB 2.5P 140 - 18 - 71 18 14.5 17 4 023 h
DRILLS M24X1 ISO2(6H) 23 23.09 SM024MANEB 2.5P 140 - 18 - 71 18 14.5 17 4 023 h
ISO2(6H) 23.5 23.6 SM025OANEB 2.5P 140 - 18 - 71 18 14.5 17 4 023 h
M25X1.5
Technical
info
100
