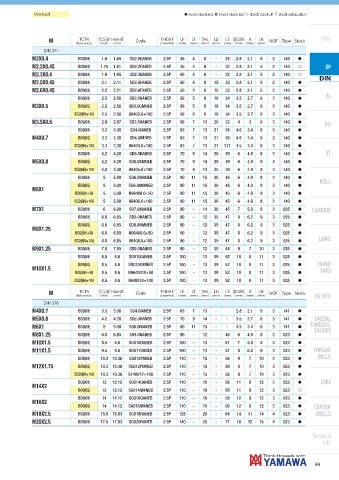

Page 101 - Yamawa_European_Catalogue_YEU23

Oversized h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 371
ISO2(6H) 1.6 1.65 SD2.0EANEB 2.5P 45 4 8 - 32 2.8 2.1 5 2 140 h
M2X0.4
ISO2(6H) 1.75 1.81 SD2.2FANEB 2.5P 45 4 9 - 32 2.8 2.1 5 2 140 f SP
M2.2X0.45
ISO2(6H) 1.9 1.95 SD2.3EANEB 2.5P 45 4 9 - 32 2.8 2.1 5 2 140 f
DIN
M2.3X0.4
ISO2(6H) 2.1 2.11 SD2.5FANEB 2.5P 50 4 8 15 33 2.8 2.1 5 2 140 h
M2.5X0.45
ISO2(6H) 2.2 2.21 SD2.6FANEB 2.5P 50 4 8 15 33 2.8 2.1 5 2 140 h
M2.6X0.45
SL
ISO2(6H) 2.5 2.56 SD3.0GANEB 2.5P 56 5 9 18 34 3.5 2.7 6 3 140 h
ISO3(6G) 2.5 2.56 SD3.0GMNEB 2.5P 56 5 9 18 34 3.5 2.7 6 3 140 h
M3X0.5
ISO2(6H)+100 2.5 2.56 96403.0+100 2.5P 56 5 9 18 34 3.5 2.7 6 3 140 h
ISO2(6H) 2.9 2.97 SD3.5HANEB 2.5P 56 7 11 20 32 4 3 6 3 140 h
M3.5X0.6 PO
ISO2(6H) 3.3 3.38 SD4.0IANEB 2.5P 63 7 13 21 38 4.5 3.4 6 3 140 h
ISO3(6G) 3.3 3.38 SD4.0IMNEB 2.5P 63 7 13 21 38 4.5 3.4 6 3 140 h
M4X0.7
ISO2(6H)+100 3.3 3.38 96404.0+100 2.5P 63 7 13 21 371 4.5 3.4 6 3 140 h
ISO2(6H) 4.2 4.28 SD5.0KANEB 2.5P 70 9 14 25 39 6 4.9 8 3 140 h ST
ISO3(6G) 4.2 4.28 SD5.0KMNEB 2.5P 70 9 14 25 39 6 4.9 8 3 140 h
M5X0.8
ISO2(6H)+100 4.2 4.28 96405.0+100 2.5P 70 9 14 25 39 6 4.9 8 3 140 h
ISO2(6H) 5 5.09 SD6.0MANEB 2.5P 80 11 15 30 45 6 4.9 8 3 140 h
ROLL
ISO3(6G) 5 5.09 SD6.0MMNEB 2.5P 80 11 15 30 45 6 4.9 8 3 140 h
M6X1
ISO2(6H)+50 5 5.09 N96406.0+50 2.5P 80 11 15 30 45 6 4.9 8 3 140 h
ISO2(6H)+100 5 5.09 96406.0+100 2.5P 80 11 15 30 45 6 4.9 8 3 140 h
ISO2(6H) 6 6.09 SD7.0MANEB 2.5P 80 - 11 30 45 7 5.5 8 3 025 h
M7X1 CARBIDE
ISO2(6H) 6.8 6.85 SD8.0NANEB 2.5P 90 - 12 35 47 8 6.2 9 3 025 h
ISO3(6G) 6.8 6.85 SD8.0NMNEB 2.5P 90 - 12 35 47 8 6.2 9 3 025 h
M8X1.25
ISO2(6H)+50 6.8 6.85 N96408.0+50 2.5P 90 - 12 35 47 8 6.2 9 3 025 h
LONG
ISO2(6H)+100 6.8 6.85 96408.0+100 2.5P 90 - 12 35 47 8 6.2 9 3 025 h
ISO2(6H) 7.8 7.85 SD9.0NANEB 2.5P 90 - 12 35 48 9 7 10 3 025 h
M9X1.25
ISO2(6H) 8.5 8.6 SD010OANEB 2.5P 100 - 13 39 52 10 8 11 3 025 h
ISO3(6G) 8.5 8.6 SD010OMNEB 2.5P 100 - 13 39 52 10 8 11 3 025 h HAND
M10X1.5 TAPS
ISO2(6H)+50 8.5 8.6 N9640010+50 2.5P 100 - 13 39 52 10 8 11 3 025 h
ISO2(6H)+100 8.5 8.6 9640010+100 2.5P 100 - 13 39 52 10 8 11 3 025 h

TCTR Ø Hole Ø THCHT LF LT THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) EG (STI)
M Code NOF Type Stock
DIN 376
ISO2(6H) 3.3 3.38 SG4.0IANEB 2.5P 63 7 13 - - 2.8 2.1 5 3 141 h
M4X0.7
ISO2(6H) 4.2 4.28 SG5.0KANEB 2.5P 70 9 14 - - 3.5 2.7 6 3 141 h SPECIAL
M5X0.8
ISO2(6H) 5 5.09 SG6.0MANEB 2.5P 80 11 15 - - 4.5 3.4 6 3 141 h THREADS,
GAUGES
M6X1
ISO2(6H) 6.8 6.85 SG8.0NANEB 2.5P 90 - 12 - 46 6 4.9 8 3 023 h
M8X1.25
ISO2(6H) 8.5 8.6 SG010OANEB 2.5P 100 - 13 - 51 7 5.5 8 3 023 h
M10X1.5
ISO2(6H) 9.5 9.6 SG011OANEB 2.5P 100 - 13 - 51 8 6.2 9 3 023 h THREAD
M11X1.5
ISO2(6H) 10.3 10.36 SG012PANEB 2.5P 110 - 15 - 56 9 7 10 3 023 h MILLS
ISO3(6G) 10.3 10.36 SG012PMNEB 2.5P 110 - 15 - 56 9 7 10 3 023 h
M12X1.75
ISO2(6H)+100 10.3 10.36 9740012+100 2.5P 110 - 15 - 56 9 7 10 3 023 h
ISO2(6H) 12 12.12 SG014QANEB 2.5P 110 - 18 - 56 11 9 12 3 023 h DIES
M14X2
ISO3(6G) 12 12.12 SG014QMNEB 2.5P 110 - 18 - 56 11 9 12 3 023 f
ISO2(6H) 14 14.12 SG016QANEB 2.5P 110 - 18 - 56 12 9 12 3 023 h
M16X2
ISO3(6G) 14 14.12 SG016QMNEB 2.5P 110 - 18 - 56 12 9 12 3 023 h CENTER
ISO2(6H) 15.5 15.63 SG018RANEB 2.5P 125 - 20 - 64 14 11 14 4 023 h DRILLS
M18X2.5
ISO2(6H) 17.5 17.63 SG020RANEB 2.5P 140 - 20 - 71 16 12 15 4 023 h
M20X2.5
Technical
info

99
