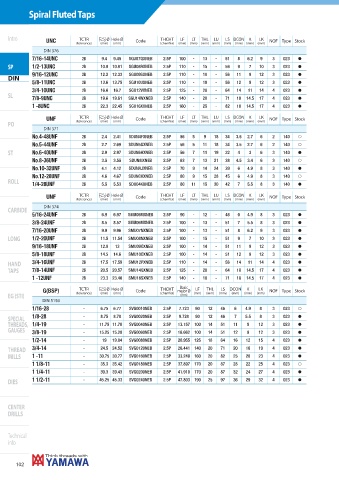

Page 104 - Yamawa_European_Catalogue_YEU23

Spiral Fluted Taps

Intro TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
UNC (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 376
2B 9.4 9.45 SGU07QXNEB 2.5P 100 - 13 - 51 8 6.2 9 3 023 h
7/16-14UNC
SP 1/2-13UNC 2B 10.9 10.91 SGU08RXNEB 2.5P 110 - 15 - 56 9 7 10 3 023 h
2B 12.2 12.33 SGU09SXNEB 2.5P 110 - 18 - 56 11 9 12 3 023 h
DIN 9/16-12UNC
2B 13.6 13.75 SGU10UXNEB 2.5P 110 - 18 - 56 12 9 12 3 023 h
5/8-11UNC
2B 16.6 16.7 SGU12VXNEB 2.5P 125 - 20 - 64 14 11 14 4 023 h
3/4-10UNC
SL
7/8-9UNC 2B 19.6 19.61 SGU14WXNEB 2.5P 140 - 20 - 71 18 14.5 17 4 023 h
2B 22.3 22.45 SGU16XXNEB 2.5P 160 - 25 - 82 18 14.5 17 4 023 h
1 -8UNC
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
UNF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
PO
DIN 371
2B 2.4 2.41 SDUN4FXNEB 2.5P 56 5 9 18 34 3.5 2.7 6 2 140 f
No.4-48UNF
2B 2.7 2.69 SDUN5GXNEB 2.5P 56 5 11 18 34 3.5 2.7 6 2 140 f
No.5-44UNF
ST No.6-40UNF 2B 2.9 2.97 SDUN6HXNEB 2.5P 56 7 11 19 32 4 3 6 3 140 h
2B 3.5 3.55 SDUN8IXNEB 2.5P 63 7 13 21 38 4.5 3.4 6 3 140 f
No.8-36UNF
2B 4.1 4.12 SDUNAJXNEB 2.5P 70 9 14 24 39 6 4.9 8 3 140 h
No.10-32UNF
2B 4.6 4.67 SDUNCKXNEB 2.5P 80 9 15 28 45 6 4.9 8 3 140 f
No.12-28UNF
ROLL
1/4-28UNF 2B 5.5 5.53 SDU04KXNEB 2.5P 80 11 15 30 42 7 5.5 8 3 140 h
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
UNF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 374
CARBIDE
2B 6.9 6.97 SMU05MXNEB 2.5P 90 - 12 - 46 6 4.9 8 3 023 h
5/16-24UNF
2B 8.5 8.57 SMU06MXNEB 2.5P 100 - 13 - 51 7 5.5 8 3 023 h
3/8-24UNF
2B 9.9 9.96 SMU07NXNEB 2.5P 100 - 13 - 51 8 6.2 9 3 023 h
7/16-20UNF
LONG 1/2-20UNF 2B 11.5 11.54 SMU08NXNEB 2.5P 100 - 15 - 51 9 7 10 3 023 h
2B 12.9 13 SMU09OXNEB 2.5P 100 - 14 - 51 11 9 12 3 023 h
9/16-18UNF
2B 14.5 14.6 SMU10OXNEB 2.5P 100 - 14 - 51 12 9 12 3 023 h
5/8-18UNF
HAND 3/4-16UNF 2B 17.5 17.59 SMU12PXNEB 2.5P 110 - 14 - 56 14 11 14 4 023 h
TAPS 7/8-14UNF 2B 20.5 20.57 SMU14QXNEB 2.5P 125 - 20 - 64 18 14.5 17 4 023 h
2B 23.3 23.46 SMU16SXNEB 2.5P 140 - 18 - 71 18 14.5 17 4 023 h
1 -12UNF
TCTR Ø Hole Ø THCHT Basic LF THL LS DCON K LK
G(BSP) (tolerance) (mm) (mm) Code (chamfer) major Ø (mm) (mm) (mm) (mm) (mm) (mm) NOF Type Stock
EG (STI) (mm)
DIN 5156
- 6.75 6.77 SVG0010NEB 2.5P 7.723 90 12 46 6 4.9 8 3 023 f
1/16-28
SPECIAL 1/8-28 - 8.75 8.78 SVG0020NEB 2.5P 9.728 90 12 46 7 5.5 8 3 023 h
- 11.75 11.78 SVG0040NEB 2.5P 13.157 100 14 51 11 9 12 3 023 h
THREADS, 1/4-19
GAUGES - 15.25 15.28 SVG0060NEB 2.5P 16.662 100 14 51 12 9 12 3 023 h
3/8-19
- 19 19.04 SVG0080NEB 2.5P 20.955 125 18 64 16 12 15 4 023 h
1/2-14
THREAD 3/4-14 - 24.5 24.52 SVG0120NEB 2.5P 26.441 140 20 71 20 16 19 4 023 h
MILLS 1 -11 - 30.75 30.77 SVG0160NEB 2.5P 33.249 160 20 82 25 20 23 4 023 h
- 35.3 35.42 SVG0180NEB 2.5P 37.897 170 20 87 28 22 25 4 023 f
1 1/8-11
- 39.3 39.43 SVG0200NEB 2.5P 41.910 170 20 87 32 24 27 4 023 h
1 1/4-11
DIES 1 1/2-11 - 45.25 45.33 SVG0240NEB 2.5P 47.803 190 25 97 36 29 32 4 023 h

CENTER
DRILLS

Technical
info

102
