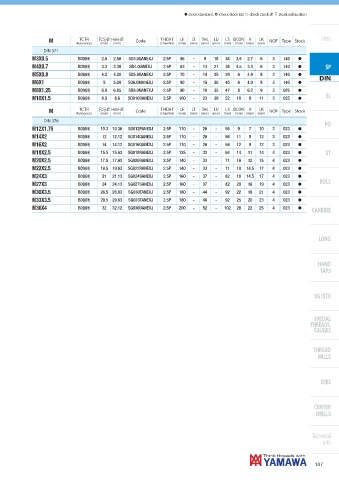

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 371
ISO2(6H) 2.5 2.56 SD3.0GANEXJ 2.5P 56 - 9 18 34 3.5 2.7 6 3 140 h
M3X0.5
ISO2(6H) 3.3 3.38 SD4.0IANEXJ 2.5P 63 - 13 21 38 4.5 3.4 6 3 140 h SP
M4X0.7
ISO2(6H) 4.2 4.28 SD5.0KANEXJ 2.5P 70 - 14 25 39 6 4.9 8 3 140 h
DIN
M5X0.8
ISO2(6H) 5 5.09 SD6.0MANEXJ 2.5P 80 - 15 30 45 6 4.9 8 3 140 h
M6X1
ISO2(6H) 6.8 6.85 SD8.0NANEXJ 2.5P 90 - 19 35 47 8 6.2 9 3 025 h
M8X1.25
SL
ISO2(6H) 8.5 8.6 SD010OANEXJ 2.5P 100 - 23 39 52 10 8 11 3 025 h
M10X1.5
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 376
PO
ISO2(6H) 10.3 10.36 SG012PANEXJ 2.5P 110 - 26 - 56 9 7 10 3 023 h
M12X1.75
ISO2(6H) 12 12.12 SG014QANEXJ 2.5P 110 - 26 - 56 11 9 12 3 023 h
M14X2
ISO2(6H) 14 14.12 SG016QANEXJ 2.5P 110 - 26 - 56 12 9 12 3 023 h
M16X2
ISO2(6H) 15.5 15.63 SG018RANEXJ 2.5P 125 - 33 - 64 14 11 14 4 023 h ST
M18X2.5
ISO2(6H) 17.5 17.63 SG020RANEXJ 2.5P 140 - 33 - 71 16 12 15 4 023 h
M20X2.5
ISO2(6H) 19.5 19.63 SG022RANEXJ 2.5P 140 - 33 - 71 18 14.5 17 4 023 h
M22X2.5
ISO2(6H) 21 21.13 SG024SANEXJ 2.5P 160 - 37 - 82 18 14.5 17 4 023 h
M24X3
ROLL
ISO2(6H) 24 24.13 SG027SANEXJ 2.5P 160 - 37 - 82 20 16 19 4 023 h
M27X3
ISO2(6H) 26.5 26.63 SG030TANEXJ 2.5P 180 - 44 - 92 22 18 21 4 023 h
M30X3.5
ISO2(6H) 29.5 29.63 SG033TANEXJ 2.5P 180 - 46 - 92 25 20 23 4 023 h
M33X3.5
ISO2(6H) 32 32.12 SG036UANEXJ 2.5P 200 - 52 - 102 28 22 25 4 023 h
M36X4 CARBIDE
