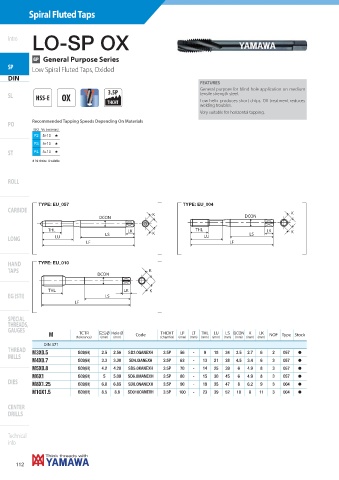

Page 114 - Yamawa_European_Catalogue_YEU23

Spiral Fluted Taps

LO-SP OX
Intro

GP General Purpose Series
SP
Low Spiral Fluted Taps, Oxided
DIN
FEATURES
General purpose for blind hole application on medium
3.5P tensile strength steel.
SL HSS-E OX
THCHT Low helix produces short chips. OX treatment reduces
welding troubles.
Very suitable for horizontal tapping.
Recommended Tapping Speeds Depending On Materials
PO
ISO Vc (m/min)
P2 5÷10 +
P3 5÷10 +
ST P4 5÷10 +
+ 1st choice , suitable

ROLL

DIN-LO-SP OX
TYPE: EU_057 TYPE: EU_004
CARBIDE K
DCON K DCON

THL LK K THL LK K
LONG LU LS LU LS
LF LF

HAND TYPE: EU_010
TAPS K
DCON

THL LK K
EG (STI) LS
LF

SPECIAL
THREADS,
GAUGES
TCTR Ø Hole Ø THCHT LF LT THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
M Code NOF Type Stock
DIN 371
THREAD ISO2(6H) 2.5 2.56 SD3.0GANEXH 3.5P 56 - 9 18 34 3.5 2.7 6 2 057 h
MILLS M3X0.5
ISO2(6H) 3.3 3.38 SD4.0IANEXH 3.5P 63 - 13 21 38 4.5 3.4 6 3 057 h
M4X0.7
ISO2(6H) 4.2 4.28 SD5.0KANEXH 3.5P 70 - 14 25 39 6 4.9 8 3 057 h
M5X0.8
ISO2(6H) 5 5.09 SD6.0MANEXH 3.5P 80 - 15 30 45 6 4.9 8 3 057 h
M6X1
DIES ISO2(6H) 6.8 6.85 SD8.0NANEXH 3.5P 90 - 19 35 47 8 6.2 9 3 004 h
M8X1.25
ISO2(6H) 8.5 8.6 SD010OANEXH 3.5P 100 - 23 39 52 10 8 11 3 004 h
M10X1.5
CENTER
DRILLS

Technical
info

112
