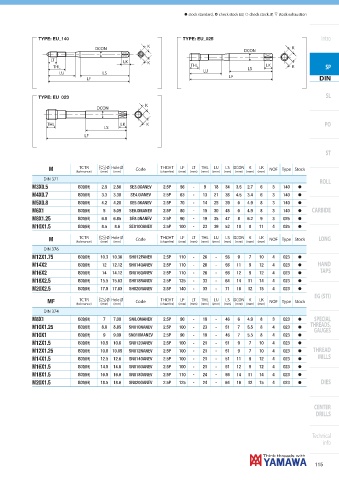

Page 117 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TYPE: EU_140 TYPE: EU_025 Intro
DCON K DCON K
LT LK K
THL THL LS LK K SP
LU LS LU
LF LF DIN

SL
TYPE: EU_023
K
DCON

THL LK K PO
LS
LF

ST

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 371
ROLL
ISO2(6H) 2.5 2.56 SE3.0GANEV 2.5P 56 - 9 18 34 3.5 2.7 6 3 140 h
M3X0.5
ISO2(6H) 3.3 3.38 SE4.0IANEV 2.5P 63 - 13 21 38 4.5 3.4 6 3 140 h
M4X0.7
ISO2(6H) 4.2 4.28 SE5.0KANEV 2.5P 70 - 14 25 39 6 4.9 8 3 140 h
M5X0.8
ISO2(6H) 5 5.09 SE6.0MANEV 2.5P 80 - 15 30 45 6 4.9 8 3 140 h CARBIDE
M6X1
ISO2(6H) 6.8 6.85 SE8.0NANEV 2.5P 90 - 19 35 47 8 6.2 9 3 025 h
M8X1.25
ISO2(6H) 8.5 8.6 SE010OANEV 2.5P 100 - 23 39 52 10 8 11 4 025 h
M10X1.5
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock LONG
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 376
ISO2(6H) 10.3 10.36 SH012PANEV 2.5P 110 - 26 - 56 9 7 10 4 023 h
M12X1.75
ISO2(6H) 12 12.12 SH014QANEV 2.5P 110 - 26 - 56 11 9 12 4 023 h HAND
M14X2
TAPS
ISO2(6H) 14 14.12 SH016QANEV 2.5P 110 - 26 - 56 12 9 12 4 023 h
M16X2
ISO2(6H) 15.5 15.63 SH018RANEV 2.5P 125 - 33 - 64 14 11 14 4 023 h
M18X2.5
ISO2(6H) 17.5 17.63 SH020RANEV 2.5P 140 - 33 - 71 16 12 15 4 023 h
M20X2.5
EG (STI)
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
MF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 374
ISO2(6H) 7 7.09 SN8.0MANEV 2.5P 90 - 19 - 46 6 4.9 8 3 023 h SPECIAL
M8X1
THREADS,
ISO2(6H) 8.8 8.85 SN010NANEV 2.5P 100 - 23 - 51 7 5.5 8 4 023 h
GAUGES
M10X1.25
ISO2(6H) 9 9.09 SN010MANEV 2.5P 90 - 19 - 46 7 5.5 8 4 023 h
M10X1
ISO2(6H) 10.5 10.6 SN012OANEV 2.5P 100 - 21 - 51 9 7 10 4 023 h
M12X1.5
ISO2(6H) 10.8 10.85 SN012NANEV 2.5P 100 - 21 - 51 9 7 10 4 023 h THREAD
M12X1.25
ISO2(6H) 12.5 12.6 SN014OANEV 2.5P 100 - 21 - 51 11 9 12 4 023 h MILLS
M14X1.5
ISO2(6H) 14.5 14.6 SN016OANEV 2.5P 100 - 21 - 51 12 9 12 4 023 h
M16X1.5
ISO2(6H) 16.5 16.6 SN018OANEV 2.5P 110 - 24 - 56 14 11 14 4 023 h
M18X1.5
ISO2(6H) 18.5 18.6 SN020OANEV 2.5P 125 - 24 - 64 16 12 15 4 023 h DIES
M20X1.5
CENTER
DRILLS

Technical
info

115
