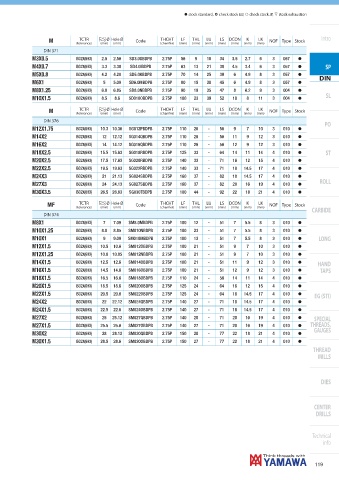

Page 121 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock Intro
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 371
ISO2X(6HX) 2.5 2.56 SD3.0GBDPB 2.75P 56 9 18 34 3.5 2.7 6 3 057 h
M3X0.5
ISO2X(6HX) 3.3 3.38 SD4.0IBDPB 2.75P 63 13 21 38 4.5 3.4 6 3 057 h SP
M4X0.7
ISO2X(6HX) 4.2 4.28 SD5.0KBDPB 2.75P 70 14 25 39 6 4.9 8 3 057 h
DIN
M5X0.8
ISO2X(6HX) 5 5.09 SD6.0MBDPB 2.75P 80 15 30 45 6 4.9 8 3 057 h
M6X1
ISO2X(6HX) 6.8 6.85 SD8.0NBDPB 2.75P 90 19 35 47 8 6.2 9 3 004 h
M8X1.25
SL
ISO2X(6HX) 8.5 8.6 SD010OBDPB 2.75P 100 23 39 52 10 8 11 3 004 h
M10X1.5
TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 376
PO
ISO2X(6HX) 10.3 10.36 SG012PBDPB 2.75P 110 26 - 56 9 7 10 3 010 h
M12X1.75
ISO2X(6HX) 12 12.12 SG014QBDPB 2.75P 110 26 - 56 11 9 12 3 010 h
M14X2
ISO2X(6HX) 14 14.12 SG016QBDPB 2.75P 110 26 - 56 12 9 12 3 010 h
M16X2
ISO2X(6HX) 15.5 15.63 SG018RBDPB 2.75P 125 33 - 64 14 11 14 4 010 h ST
M18X2.5
ISO2X(6HX) 17.5 17.63 SG020RBDPB 2.75P 140 33 - 71 16 12 15 4 010 h
M20X2.5
ISO2X(6HX) 19.5 19.63 SG022RBDPB 2.75P 140 33 - 71 18 14.5 17 4 010 h
M22X2.5
ISO2X(6HX) 21 21.13 SG024SBDPB 2.75P 160 37 - 82 18 14.5 17 4 010 h
M24X3
ROLL
ISO2X(6HX) 24 24.13 SG027SBDPB 2.75P 160 37 - 82 20 16 19 4 010 h
M27X3
ISO2X(6HX) 26.5 26.63 SG030TBDPB 2.75P 180 44 - 92 22 18 21 4 010 h
M30X3.5
TCTR Ø Hole Ø THCHT LF THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
MF Code NOF Type Stock
CARBIDE
DIN 374
ISO2X(6HX) 7 7.09 SM8.0MBDPB 2.75P 100 12 - 51 7 5.5 8 3 010 h
M8X1
ISO2X(6HX) 8.8 8.85 SM010NBDPB 2.75P 100 23 - 51 7 5.5 8 3 010 h
M10X1.25
ISO2X(6HX) 9 9.09 SM010MBDPB 2.75P 100 13 - 51 7 5.5 8 3 010 h LONG
M10X1
ISO2X(6HX) 10.5 10.6 SM012OBDPB 2.75P 100 21 - 51 9 7 10 3 010 h
M12X1.5
ISO2X(6HX) 10.8 10.85 SM012NBDPB 2.75P 100 21 - 51 9 7 10 3 010 h
M12X1.25
ISO2X(6HX) 12.5 12.6 SM014OBDPB 2.75P 100 21 - 51 11 9 12 3 010 h
M14X1.5 HAND
ISO2X(6HX) 14.5 14.6 SM016OBDPB 2.75P 100 21 - 51 12 9 12 3 010 h TAPS
M16X1.5
ISO2X(6HX) 16.5 16.6 SM018OBDPB 2.75P 110 24 - 56 14 11 14 4 010 h
M18X1.5
ISO2X(6HX) 18.5 18.6 SM020OBDPB 2.75P 125 24 - 64 16 12 15 4 010 h
M20X1.5
ISO2X(6HX) 20.5 20.6 SM022OBDPB 2.75P 125 24 - 64 18 14.5 17 4 010 h
M22X1.5 EG (STI)
ISO2X(6HX) 22 22.12 SM024QBDPB 2.75P 140 27 - 71 18 14.5 17 4 010 h
M24X2
ISO2X(6HX) 22.5 22.6 SM024OBDPB 2.75P 140 27 - 71 18 14.5 17 4 010 h
M24X1.5
ISO2X(6HX) 25 25.12 SM027QBDPB 2.75P 140 20 - 71 20 16 19 4 010 h
M27X2 SPECIAL
ISO2X(6HX) 25.5 25.6 SM027OBDPB 2.75P 140 27 - 71 20 16 19 4 010 h THREADS,
M27X1.5
GAUGES
ISO2X(6HX) 28 28.12 SM030QBDPB 2.75P 150 20 - 77 22 18 21 4 010 h
M30X2
ISO2X(6HX) 28.5 28.6 SM030OBDPB 2.75P 150 27 - 77 22 18 21 4 010 h
M30X1.5
