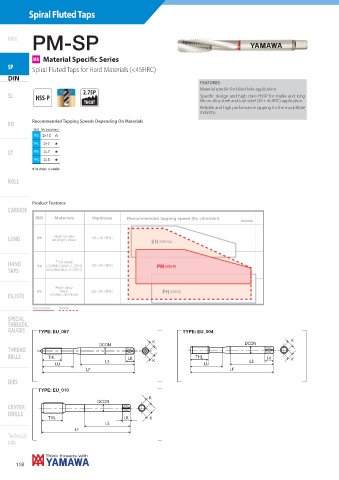

Spiral Fluted Taps

PM-SP
Intro

MS Material Specific Series
SP
Spiral Fluted Taps for Hard Materials (<45HRC)
DIN
FEATURES
Material specific for blind hole application.
2.75P
SL HSS-P Specific design and high class HSSP for stable and long
THCHT life on alloy steel and tool steel (30 ÷ 45HRC) application.
Reliable and high performance tapping for the mould&die
industry.
Recommended Tapping Speeds Depending On Materials
PO
ISO Vc (m/min)
P3 2÷10 ,
P4 2÷7 +
ST P5 2÷7 +
P6 2÷5 +
+ 1st choice , suitable
ROLL

DIN-PM-SP
Product Features
CARBIDE
ISO Materials Hardness Recommended tapping speed (Vc <5m/min)
5m/min

High tensile
LONG P6 strength steel 40÷45 HRC
EH (HSS-Co)

Tool steel
HAND P5 (100MnCrW4-1.2510 30÷40 HRC PM (HSS-P)
TAPS 40CrMnMo7-1.2311)

High alloy
P4 steel 25÷30 HRC PH (HSS-E)
EG (STI) (CrMo, NiCrMo)
Most Suitable Suitable
SPECIAL
THREADS,
GAUGES TYPE: EU_057 TYPE: EU_004
K K
DCON DCON
THREAD
MILLS THL LK K THL LK K
LU LS LU LS
LF LF

DIES
TYPE: EU_010
K
DCON
CENTER
DRILLS
THL LK K
LS
LF
