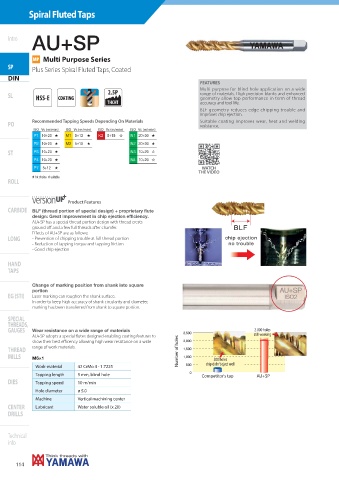

Spiral Fluted Taps

AU+SP
Intro

MP Multi Purpose Series
SP
Plus Series Spiral Fluted Taps, Coated
DIN
FEATURES
Multi purpose for blind hole application on a wide
2.5P range of materials. High precision blanks and enhanced
SL HSS-E COATING geometry allow top performance in term of thread
THCHT accuracy and tool life.
BLF geometry reduces edge chipping trouble and
improves chip ejection.
Recommended Tapping Speeds Depending On Materials Suitable coating improves wear, heat and welding
PO resistance.
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
P1 10÷20 + M1 5÷12 + K2 5÷15 , N1 20÷30 +
P2 10÷20 + M2 5÷10 + N2 20÷30 +
ST P3 10÷20 + N3 10÷20 ,
P4 10÷20 + N4 10÷20 ,
P7 5÷12 + WATCH
THE VIDEO
+ 1st choice , suitable
ROLL

DIN-AU+SP
Product Features
CARBIDE BLF (thread portion of special design) + proprietary flute
design: Great improvement in chip ejection efficiency.
AU+SP has a special thread portion design with thread crests
ground off and a few full threads after chamfer.
Effects of AU+SP are as follows:
LONG - Prevention of chipping trouble at full thread portion
- Reduction of tapping torque and tapping friction
- Good chip ejection

HAND
TAPS

Change of marking position from shank into square
portion
EG (STI) Laser marking can roughen the shank surface.
In order to keep high accuracy of shank circularity and diameter,
marking has been transferred from shank to square portion.
SPECIAL
THREADS,
GAUGES Wear resistance on a wide range of materials 2.000 holes
AU+SP adopts a special flutes designed enabling coating features to still working
show their best efficency allowing high wear resistance on a wide
range of work materials.
THREAD Number of holes
MILLS M6×1 200 holes
Work-material 42 CrMo 4 - 1.7225 chip didn't eject well
Tapping length 9 mm, blind hole Competitor's tap AU+SP
DIES Tapping speed 10 m/min
Hole diameter ø 5.0
Machine Vertical machining center
CENTER Lubricant Water soluble oil (x 20)
