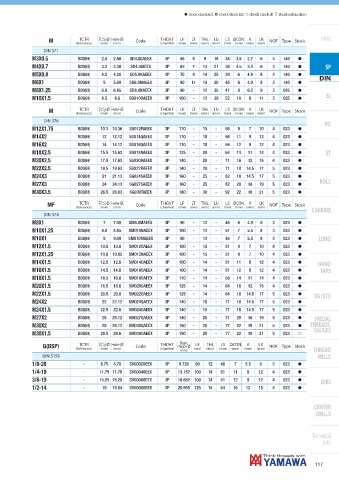

Page 119 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 371
ISO2(6H) 2.5 2.56 SD3.0GAEEX 3P 56 5 9 18 34 3.5 2.7 6 3 140 h
M3X0.5
ISO2(6H) 3.3 3.38 SD4.0IAEEX 3P 63 7 13 21 38 4.5 3.4 6 3 140 h SP
M4X0.7
ISO2(6H) 4.2 4.28 SD5.0KAEEX 3P 70 9 14 25 39 6 4.9 8 3 140 h
DIN
M5X0.8
ISO2(6H) 5 5.09 SD6.0MAEEX 3P 80 11 15 30 45 6 4.9 8 3 140 h
M6X1
ISO2(6H) 6.8 6.85 SD8.0NAEEX 3P 90 - 12 35 47 8 6.2 9 3 025 h
M8X1.25
SL
ISO2(6H) 8.5 8.6 SD010OAEEX 3P 100 - 13 39 52 10 8 11 3 025 h
M10X1.5
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 376
PO
ISO2(6H) 10.3 10.36 SG012PAEEX 3P 110 - 15 - 56 9 7 10 4 023 h
M12X1.75
ISO2(6H) 12 12.12 SG014QAEEX 3P 110 - 18 - 56 11 9 12 4 023 h
M14X2
ISO2(6H) 14 14.12 SG016QAEEX 3P 110 - 18 - 56 12 9 12 4 023 h
M16X2
ISO2(6H) 15.5 15.63 SG018RAEEX 3P 125 - 20 - 64 14 11 14 4 023 h ST
M18X2.5
ISO2(6H) 17.5 17.63 SG020RAEEX 3P 140 - 20 - 71 16 12 15 4 023 h
M20X2.5
ISO2(6H) 19.5 19.63 SG022RAEEX 3P 140 - 20 - 71 18 14.5 17 5 023 h
M22X2.5
ISO2(6H) 21 21.13 SG024SAEEX 3P 160 - 25 - 82 18 14.5 17 5 023 h
M24X3
ROLL
ISO2(6H) 24 24.13 SG027SAEEX 3P 160 - 25 - 82 20 16 19 5 023 h
M27X3
ISO2(6H) 26.5 26.63 SG030TAEEX 3P 180 - 30 - 92 22 18 21 5 023 h
M30X3.5
TCTR Ø Hole Ø THCHT LF LT THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
MF Code NOF Type Stock
CARBIDE
DIN 374
ISO2(6H) 7 7.09 SM8.0MAEEX 3P 90 - 12 - 46 6 4.9 8 3 023 h
M8X1
ISO2(6H) 8.8 8.85 SM010NAEEX 3P 100 - 13 - 51 7 5.5 8 3 023 h
M10X1.25
ISO2(6H) 9 9.09 SM010MAEEX 3P 90 - 13 - 46 7 5.5 8 3 023 h LONG
M10X1
ISO2(6H) 10.5 10.6 SM012OAEEX 3P 100 - 15 - 51 9 7 10 4 023 h
M12X1.5
ISO2(6H) 10.8 10.85 SM012NAEEX 3P 100 - 15 - 51 9 7 10 4 023 h
M12X1.25
ISO2(6H) 12.5 12.6 SM014OAEEX 3P 100 - 14 - 51 11 9 12 4 023 h
M14X1.5 HAND
ISO2(6H) 14.5 14.6 SM016OAEEX 3P 100 - 14 - 51 12 9 12 4 023 h TAPS
M16X1.5
ISO2(6H) 16.5 16.6 SM018OAEEX 3P 110 - 14 - 56 14 11 14 4 023 h
M18X1.5
ISO2(6H) 18.5 18.6 SM020OAEEX 3P 125 - 14 - 64 16 12 15 4 023 h
M20X1.5
ISO2(6H) 20.5 20.6 SM022OAEEX 3P 125 - 14 - 64 18 14.5 17 5 023 h
M22X1.5 EG (STI)
ISO2(6H) 22 22.12 SM024QAEEX 3P 140 - 18 - 71 18 14.5 17 5 023 h
M24X2
ISO2(6H) 22.5 22.6 SM024OAEEX 3P 140 - 18 - 71 18 14.5 17 5 023 h
M24X1.5
ISO2(6H) 25 25.12 SM027QAEEX 3P 140 - 20 - 71 20 16 19 5 023 h
M27X2 SPECIAL
ISO2(6H) 28 28.12 SM030QAEEX 3P 150 - 20 - 77 22 18 21 5 023 h THREADS,
M30X2
GAUGES
ISO2(6H) 28.5 28.6 SM030OAEEX 3P 150 - 20 - 77 22 18 21 5 023 f
M30X1.5
TCTR Ø Hole Ø THCHT Basic LF THL LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm)
G(BSP) Code major Ø NOF Type Stock
(mm) THREAD
DIN 5156 MILLS
- 8.75 8.78 SVG0020EEX 3P 9.728 90 12 46 7 5.5 8 3 023 h
1/8-28
- 11.75 11.78 SVG0040EEX 3P 13.157 100 14 51 11 9 12 4 023 h
1/4-19
- 15.25 15.28 SVG0060EEX 3P 16.662 100 14 51 12 9 12 4 023 h
3/8-19 DIES
- 19 19.04 SVG0080EEX 3P 20.955 125 18 64 16 12 15 4 023 h
1/2-14
CENTER
DRILLS
Technical
info
117
