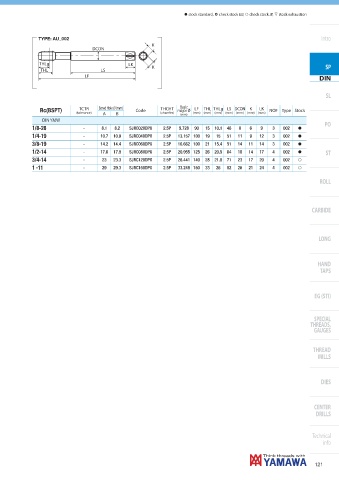

Page 123 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TYPE: AU_002 Intro
K
DCON

SP
THLg
LK
K
THL LS
DIN
LF
SL
Basic
TCTR Bored Hole Ø (mm) Code THCHT major Ø LF THL THLg LS DCON K LK NOF Type Stock
Rc(BSPT) (tolerance) A B (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN YMW
PO
- 8.1 8.2 SJRC020DPX 2.5P 9.728 90 15 10.1 46 8 6 9 3 002 h
1/8-28
- 10.7 10.9 SJRC040DPX 2.5P 13.157 100 19 15 51 11 9 12 3 002 h
1/4-19
- 14.2 14.4 SJRC060DPX 2.5P 16.662 100 21 15.4 51 14 11 14 3 002 h
3/8-19
- 17.6 17.9 SJRC080DPX 2.5P 20.955 125 26 20.5 64 18 14 17 4 002 h
1/2-14 ST
- 23 23.3 SJRC120DPX 2.5P 26.441 140 28 21.8 71 23 17 20 4 002 f
3/4-14
- 29 29.3 SJRC160DPX 2.5P 33.249 160 33 26 82 26 21 24 4 002 f
1 -11
