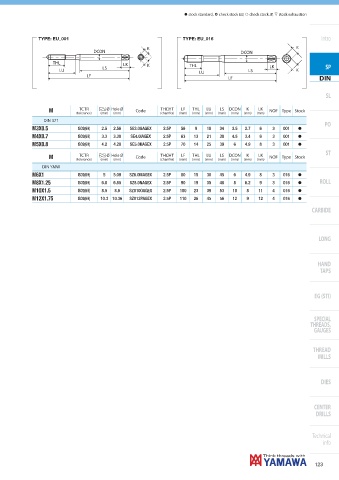

Page 125 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TYPE: EU_001 TYPE: EU_016 Intro
K K
DCON DCON
THL LK K THL
LU LS LU LS LK K SP
LF LF DIN

SL

TCTR Ø Hole Ø THCHT LF THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
M Code NOF Type Stock
DIN 371
PO
ISO2(6H) 2.5 2.56 SE3.0GAGEX 2.5P 56 9 18 34 3.5 2.7 6 3 001 h
M3X0.5
ISO2(6H) 3.3 3.38 SE4.0IAGEX 2.5P 63 13 21 38 4.5 3.4 6 3 001 h
M4X0.7
ISO2(6H) 4.2 4.28 SE5.0KAGEX 2.5P 70 14 25 39 6 4.9 8 3 001 h
M5X0.8
ST
TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN YMW
ISO2(6H) 5 5.09 SZ6.0MAGEX 2.5P 80 15 30 45 6 4.9 8 3 016 h
M6X1
ISO2(6H) 6.8 6.85 SZ8.0NAGEX 2.5P 90 19 35 48 8 6.2 9 3 016 h ROLL
M8X1.25
ISO2(6H) 8.5 8.6 SZ010OAGEX 2.5P 100 23 39 53 10 8 11 4 016 h
M10X1.5
ISO2(6H) 10.3 10.36 SZ012PAGEX 2.5P 110 26 45 56 12 9 12 4 016 h
M12X1.75
