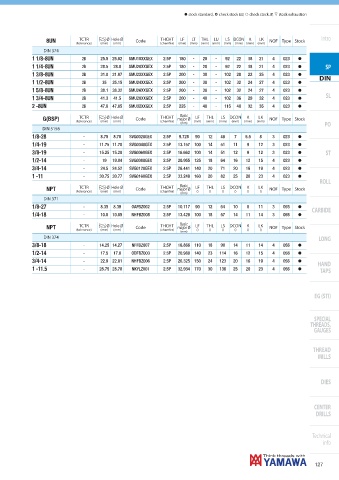

Page 129 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
8UN (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 374
2B 25.5 25.62 SMU18XXGEX 2.5P 180 - 28 - 92 22 18 21 4 023 h
1 1/8-8UN
2B 28.5 28.8 SMU20XXGEX 2.5P 180 - 28 - 92 22 18 21 4 023 h SP
1 1/4-8UN
2B 31.8 31.97 SMU22XXGEX 2.5P 200 - 30 - 102 28 22 25 4 023 h
DIN
1 3/8-8UN
2B 35 35.15 SMU24XXGEX 2.5P 200 - 30 - 102 32 24 27 4 023 h
1 1/2-8UN
2B 38.1 38.32 SMU26XXGEX 2.5P 200 - 30 - 102 32 24 27 4 023 h
1 5/8-8UN
SL
2B 41.3 41.5 SMU28XXGEX 2.5P 200 - 40 - 102 36 29 32 4 023 h
1 3/4-8UN
2B 47.8 47.85 SMU32XXGEX 2.5P 225 - 40 - 115 40 32 35 4 023 h
2 -8UN
Basic
TCTR Ø Hole Ø Code THCHT major Ø LF THL LS DCON K LK NOF Type Stock
G(BSP) (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm)
(mm) PO
DIN 5156
- 8.75 8.78 SVG0020GEX 2.5P 9.728 90 12 46 7 5.5 8 3 023 h
1/8-28
- 11.75 11.78 SVG0040GEX 2.5P 13.157 100 14 51 11 9 12 3 023 h
1/4-19
- 15.25 15.28 SVG0060GEX 2.5P 16.662 100 14 51 12 9 12 3 023 h ST
3/8-19
- 19 19.04 SVG0080GEX 2.5P 20.955 125 18 64 16 12 15 4 023 h
1/2-14
- 24.5 24.52 SVG0120GEX 2.5P 26.441 140 20 71 20 16 19 4 023 h
3/4-14
- 30.75 30.77 SVG0160GEX 2.5P 33.249 160 20 82 25 20 23 4 023 h
1 -11
ROLL
Basic
TCTR Ø Hole Ø Code THCHT major Ø LF THL LS DCON K LK NOF Type Stock
NPT (tolerance) (mm) (mm) (chamfer) () () () () () ()
(mm)
DIN 371
- 8.35 8.39 OAFBZ002 2.5P 10.117 90 12 64 10 8 11 3 055 h
CARBIDE
1/8-27
- 10.8 10.85 NHFBZ008 2.5P 13.426 100 18 57 14 11 14 3 055 h
1/4-18
Basic
TCTR Ø Hole Ø Code THCHT major Ø LF THL LS DCON K LK NOF Type Stock
(tolerance) (mm) (mm) (chamfer) () () () () () ()
NPT
(mm)
DIN 374 LONG
- 14.25 14.27 NFFBZ007 2.5P 16.866 110 18 90 14 11 14 4 056 h
3/8-18
- 17.5 17.6 ODFBZ003 2.5P 20.980 140 23 114 16 12 15 4 056 h
1/2-14
- 22.9 22.91 NHFBZ006 2.5P 26.325 150 24 123 20 16 19 4 056 h
HAND
3/4-14
- 28.75 28.78 NKYLZ001 2.5P 32.934 170 30 136 25 20 23 4 056 h
