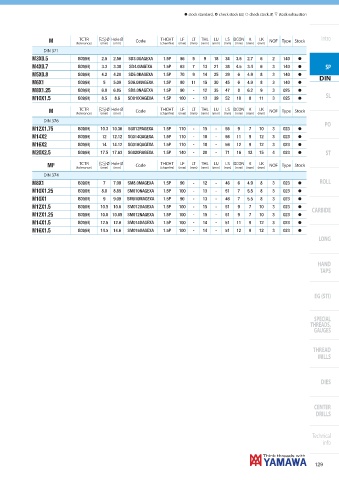

Page 131 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 371
ISO2(6H) 2.5 2.56 SD3.0GAGEXA 1.5P 56 5 9 18 34 3.5 2.7 6 2 140 h
M3X0.5
ISO2(6H) 3.3 3.38 SD4.0IAGEXA 1.5P 63 7 13 21 38 4.5 3.4 6 3 140 h SP
M4X0.7
ISO2(6H) 4.2 4.28 SD5.0KAGEXA 1.5P 70 9 14 25 39 6 4.9 8 3 140 h
DIN
M5X0.8
ISO2(6H) 5 5.09 SD6.0MAGEXA 1.5P 80 11 15 30 45 6 4.9 8 3 140 h
M6X1
ISO2(6H) 6.8 6.85 SD8.0NAGEXA 1.5P 90 - 12 35 47 8 6.2 9 3 025 h
M8X1.25
SL
ISO2(6H) 8.5 8.6 SD010OAGEXA 1.5P 100 - 13 39 52 10 8 11 3 025 h
M10X1.5
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 376
PO
ISO2(6H) 10.3 10.36 SG012PAGEXA 1.5P 110 - 15 - 56 9 7 10 3 023 h
M12X1.75
ISO2(6H) 12 12.12 SG014QAGEXA 1.5P 110 - 18 - 56 11 9 12 3 023 h
M14X2
ISO2(6H) 14 14.12 SG016QAGEXA 1.5P 110 - 18 - 56 12 9 12 3 023 h
M16X2
ISO2(6H) 17.5 17.63 SG020RAGEXA 1.5P 140 - 20 - 71 16 12 15 4 023 h ST
M20X2.5
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
MF
DIN 374
ISO2(6H) 7 7.09 SM8.0MAGEXA 1.5P 90 - 12 - 46 6 4.9 8 3 023 h ROLL
M8X1
ISO2(6H) 8.8 8.85 SM010NAGEXA 1.5P 100 - 13 - 51 7 5.5 8 3 023 h
M10X1.25
ISO2(6H) 9 9.09 SM010MAGEXA 1.5P 90 - 13 - 46 7 5.5 8 3 023 h
M10X1
ISO2(6H) 10.5 10.6 SM012OAGEXA 1.5P 100 - 15 - 51 9 7 10 3 023 h
CARBIDE
M12X1.5
ISO2(6H) 10.8 10.85 SM012NAGEXA 1.5P 100 - 15 - 51 9 7 10 3 023 h
M12X1.25
ISO2(6H) 12.5 12.6 SM014OAGEXA 1.5P 100 - 14 - 51 11 9 12 3 023 h
M14X1.5
ISO2(6H) 14.5 14.6 SM016OAGEXA 1.5P 100 - 14 - 51 12 9 12 3 023 h
M16X1.5
LONG
HAND
TAPS

EG (STI)

SPECIAL
THREADS,
GAUGES
