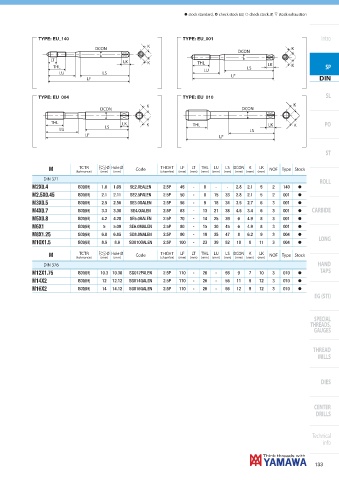

Page 135 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TYPE: EU_140 TYPE: EU_001 Intro
DCON K K
DCON
LT LK K THL
THL LS LK K SP
LU LS LU LF
LF DIN

SL
TYPE: EU_004 TYPE: EU_010
K K
DCON DCON
THL LK K THL LK K PO
LU LS LS
LF LF

ST

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 371
ROLL
ISO2(6H) 1.6 1.65 SE2.0EALEN 2.5P 45 - 8 - - 2.8 2.1 5 2 140 h
M2X0.4
ISO2(6H) 2.1 2.11 SE2.5FALEN 2.5P 50 - 8 15 33 2.8 2.1 5 2 001 h
M2.5X0.45
ISO2(6H) 2.5 2.56 SE3.0GALEN 2.5P 56 - 9 18 34 3.5 2.7 6 3 001 h
M3X0.5
ISO2(6H) 3.3 3.38 SE4.0IALEN 2.5P 63 - 13 21 38 4.5 3.4 6 3 001 h CARBIDE
M4X0.7
ISO2(6H) 4.2 4.28 SE5.0KALEN 2.5P 70 - 14 25 39 6 4.9 8 3 001 h
M5X0.8
ISO2(6H) 5 5.09 SE6.0MALEN 2.5P 80 - 15 30 45 6 4.9 8 3 001 h
M6X1
ISO2(6H) 6.8 6.85 SD8.0NALEN 2.5P 90 - 19 35 47 8 6.2 9 3 004 h
LONG
M8X1.25
ISO2(6H) 8.5 8.6 SD010OALEN 2.5P 100 - 23 39 52 10 8 11 3 004 h
M10X1.5
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 376 HAND
TAPS
ISO2(6H) 10.3 10.36 SG012PALEN 2.5P 110 - 26 - 56 9 7 10 3 010 h
M12X1.75
ISO2(6H) 12 12.12 SG014QALEN 2.5P 110 - 26 - 56 11 9 12 3 010 h
M14X2
ISO2(6H) 14 14.12 SG016QALEN 2.5P 110 - 26 - 56 12 9 12 3 010 h
M16X2
