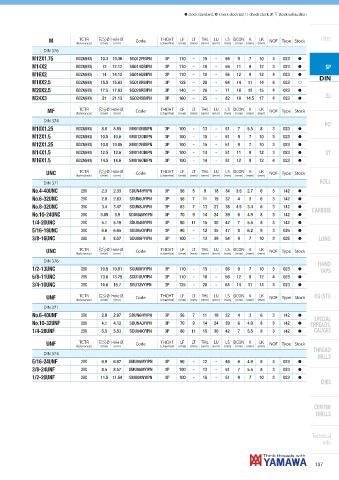

Page 139 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 376
ISO2X(6HX) 10.3 10.36 SG012PBIPN 3P 110 - 15 - 56 9 7 10 3 023 h
M12X1.75
ISO2X(6HX) 12 12.12 SG014QBIPN 3P 110 - 18 - 56 11 9 12 3 023 h SP
M14X2
ISO2X(6HX) 14 14.12 SG016QBIPN 3P 110 - 18 - 56 12 9 12 4 023 h
DIN
M16X2
ISO2X(6HX) 15.5 15.63 SG018RBIPN 3P 125 - 20 - 64 14 11 14 4 023 f
M18X2.5
ISO2X(6HX) 17.5 17.63 SG020RBIPN 3P 140 - 20 - 71 16 12 15 4 023 h
M20X2.5
SL
ISO2X(6HX) 21 21.13 SG024SBIPN 3P 160 - 25 - 82 18 14.5 17 4 023 h
M24X3
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
MF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 374
PO
ISO2X(6HX) 8.8 8.85 SM010NBIPN 3P 100 - 13 - 51 7 5.5 8 3 023 h
M10X1.25
ISO2X(6HX) 10.5 10.6 SM012OBIPN 3P 100 - 15 - 51 9 7 10 3 023 h
M12X1.5
ISO2X(6HX) 10.8 10.85 SM012NBIPN 3P 100 - 15 - 51 9 7 10 3 023 h
M12X1.25
ISO2X(6HX) 12.5 12.6 SM014OBIPN 3P 100 - 14 - 51 11 9 12 3 023 h ST
M14X1.5
ISO2X(6HX) 14.5 14.6 SM016OBIPN 3P 100 - 14 - 51 12 9 12 4 023 h
M16X1.5
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
UNC (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 371 ROLL
2BX 2.3 2.33 SDUN4HYIPN 3P 56 5 9 18 34 3.5 2.7 6 3 142 h
No.4-40UNC
2BX 2.8 2.83 SDUN6JYIPN 3P 56 7 11 19 32 4 3 6 3 142 h
No.6-32UNC
2BX 3.4 3.47 SDUN8JYIPN 3P 63 7 13 21 38 4.5 3.4 6 3 142 h
CARBIDE
No.8-32UNC
2BX 3.89 3.9 SDUNAMYIPN 3P 70 9 14 24 39 6 4.9 8 3 142 h
No.10-24UNC
2BX 5.1 5.19 SDU04NYIPN 3P 80 11 15 30 42 7 5.5 8 3 142 h
1/4-20UNC
2BX 6.6 6.65 SDU05OYIPN 3P 90 - 12 35 47 8 6.2 9 3 025 h
5/16-18UNC
2BX 8 8.07 SDU06PYIPN 3P 100 - 13 39 54 9 7 10 3 025 h LONG
3/8-16UNC
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
UNC (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 376
HAND
2BX 10.9 10.91 SGU08RYIPN 3P 110 - 15 - 56 9 7 10 3 023 h
1/2-13UNC TAPS
2BX 13.6 13.75 SGU10UYIPN 3P 110 - 18 - 56 12 9 12 4 023 h
5/8-11UNC
2BX 16.6 16.7 SGU12VYIPN 3P 125 - 20 - 64 14 11 14 4 023 h
3/4-10UNC
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock EG (STI)
UNF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 371
2BX 2.9 2.97 SDUN6HYIPN 3P 56 7 11 19 32 4 3 6 3 142 h
SPECIAL
No.6-40UNF
2BX 4.1 4.12 SDUNAJYIPN 3P 70 9 14 24 39 6 4.9 8 3 142 h
No.10-32UNF THREADS,
2BX 5.5 5.53 SDU04KYIPN 3P 80 11 15 30 42 7 5.5 8 3 142 h GAUGES
1/4-28UNF
TCTR Ø Hole Ø THCHT LF LT THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
UNF Code NOF Type Stock
THREAD
DIN 374
MILLS
2BX 6.9 6.97 SMU05MYIPN 3P 90 - 12 - 46 6 4.9 8 3 023 h
5/16-24UNF
2BX 8.5 8.57 SMU06MYIPN 3P 100 - 13 - 51 7 5.5 8 3 023 h
3/8-24UNF
2BX 11.5 11.54 SMU08NYIPN 3P 100 - 15 - 51 9 7 10 3 023 h
DIES
1/2-20UNF
CENTER
DRILLS

Technical
info

137
