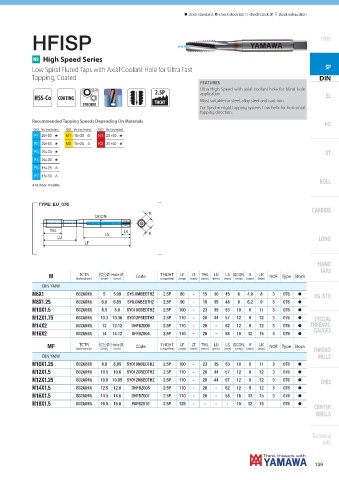

Page 141 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

HFISP Intro

HS High Speed Series
Low Spiral Fluted Taps with Axial Coolant Hole for Ultra Fast SP
Tapping, Coated DIN
FEATURES
Ultra High Speed with axial coolant hole for blind hole
2.5P application
HSS-Co COATING Most suitable for steel, alloy steel and cast iron. SL
SYNCHRO THCHT
For Synchro-rigid tapping system. Low helix for horizontal
tapping direction.
Recommended Tapping Speeds Depending On Materials
PO
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
P1 20÷50 + M1 15÷30 , K1 20÷40 +
P2 20÷50 + M2 15÷25 , K2 20÷40 +
P3 20÷30 + ST
P4 20÷30 +
P5 15÷25 ,
P7 15÷30 ,
ROLL
+ 1st choice , suitable
DIN-HFISP
TYPE: EU_076
CARBIDE
K
DCON
THL LK K
LU LS LONG
LF

HAND
TAPS
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN YMW
ISO2X(6HX) 5 5.09 SY6.0MBEDTHZ 2.5P 80 - 15 30 45 6 4.9 8 3 076 h
M6X1 EG (STI)
ISO2X(6HX) 6.8 6.85 SY8.0NBEDTHZ 2.5P 90 - 19 35 48 8 6.2 9 3 076 h
M8X1.25
ISO2X(6HX) 8.5 8.6 SY010OBEDTHZ 2.5P 100 - 23 39 53 10 8 11 3 076 h
M10X1.5
ISO2X(6HX) 10.3 10.36 SY012PBEDTHZ 2.5P 110 - 26 44 57 12 9 12 3 076 h
M12X1.75 SPECIAL
ISO2X(6HX) 12 12.12 OHFBZ006 2.5P 110 - 26 - 62 12 9 12 3 076 h THREADS,
M14X2
GAUGES
ISO2X(6HX) 14 14.12 OFFBZ004 2.5P 110 - 26 - 58 16 12 15 3 076 h
M16X2
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
MF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) THREAD
DIN YMW MILLS
ISO2X(6HX) 8.8 8.85 SY010NBEDTHZ 2.5P 100 - 23 39 53 10 8 11 3 076 h
M10X1.25
ISO2X(6HX) 10.5 10.6 SY012OBEDTHZ 2.5P 110 - 26 44 57 12 9 12 3 076 h
M12X1.5
ISO2X(6HX) 10.8 10.85 SY012NBEDTHZ 2.5P 110 - 26 44 57 12 9 12 3 076 h
M12X1.25 DIES
ISO2X(6HX) 12.5 12.6 OHFBZ005 2.5P 110 - 26 - 62 12 9 12 3 076 h
M14X1.5
ISO2X(6HX) 14.5 14.6 OHFBZ007 2.5P 110 - 26 - 58 16 12 15 3 076 h
M16X1.5
ISO2X(6HX) 16.5 16.6 PAFBZ010 2.5P 125 - - - - 16 12 15 076 h
CENTER
M18X1.5
DRILLS
