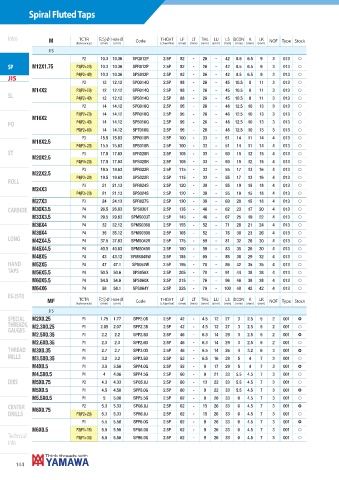

Page 146 - Yamawa_European_Catalogue_YEU23

Spiral Fluted Taps

Intro TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
JIS
P2 10.3 10.36 SPQ012P 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
SP M12X1.75 P3(P2+20) 10.3 10.36 SPR012P 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
P4(P2+40) 10.3 10.36 SPS012P 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
JIS
P2 12 12.12 SPQ014Q 2.5P 88 - 26 - 45 10.5 8 11 3 013 f
P3(P2+20) 12 12.12 SPR014Q 2.5P 88 - 26 - 45 10.5 8 11 3 013 f
M14X2
SL P4(P2+40) 12 12.12 SPS014Q 2.5P 88 - 26 - 45 10.5 8 11 3 013 f
P2 14 14.12 SPQ016Q 2.5P 95 - 26 - 48 12.5 10 13 3 013 f
P3(P2+20) 14 14.12 SPR016Q 2.5P 95 - 26 - 48 12.5 10 13 3 013 f
M16X2
PO P4(P2+40) 14 14.12 SPS016Q 2.5P 95 - 26 - 48 12.5 10 13 3 013 f
P5(P2+60) 14 14.12 SPT016Q 2.5P 95 - 26 - 48 12.5 10 13 3 013 f
P3 15.5 15.63 SPR018R 2.5P 100 - 33 - 51 14 11 14 4 013 f
M18X2.5
P4(P3+20) 15.5 15.63 SPS018R 2.5P 100 - 33 - 51 14 11 14 4 013 f
ST P3 17.5 17.63 SPR020R 2.5P 105 - 33 - 50 15 12 15 4 013 f
M20X2.5
P4(P3+20) 17.5 17.63 SPS020R 2.5P 105 - 33 - 50 15 12 15 4 013 f
P3 19.5 19.63 SPR022R 2.5P 115 - 33 - 55 17 13 16 4 013 f
P4(P3+20) 19.5 19.63 SPS022R 2.5P 115 - 33 - 55 17 13 16 4 013 f
M22X2.5
ROLL
P3 21 21.13 SPR024S 2.5P 120 - 39 - 55 19 15 18 4 013 f
M24X3
P4(P3+20) 21 21.13 SPS024S 2.5P 120 - 39 - 55 19 15 18 4 013 f
P3 24 24.13 SPR027S 2.5P 130 - 39 - 60 20 15 18 4 013 f
M27X3
CARBIDE M30X3.5 P4 26.5 26.63 SPS030T 2.5P 135 - 46 - 62 23 17 20 4 013 f
P4 29.5 29.63 SPMS033T 2.5P 145 - 46 - 67 25 19 22 4 013 f
M33X3.5
P4 32 32.12 SPMS036U 2.5P 155 - 52 - 71 28 21 24 4 013 f
M36X4
P4 35 35.12 SPMS039U 2.5P 165 - 52 - 76 30 23 26 4 013 f
M39X4
LONG P4 37.5 37.63 SPMS042V 2.5P 175 - 59 - 81 32 26 30 4 013 f
M42X4.5
P4 40.5 40.63 SPMS045V 2.5P 180 - 59 - 83 35 26 30 4 013 f
M45X4.5
P4 43 43.12 SPMS048W 2.5P 185 - 65 - 85 38 29 32 4 013 f
M48X5
HAND M52X5 P4 47 47.1 SPS052W 2.5P 195 - 70 - 86 42 35 35 4 013 f
TAPS
M56X5.5 P4 50.5 50.6 SPS056X 2.5P 205 - 70 - 91 44 38 38 4 013 f
P4 54.5 54.6 SPS060X 2.5P 215 - 76 - 96 46 38 38 4 013 f
M60X5.5
P4 58 58.1 SPS064Y 2.5P 225 - 79 - 100 48 42 42 4 013 f
M64X6
EG (STI)
TCTR Ø Hole Ø THCHT LF LT THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
MF Code NOF Type Stock
JIS
SPECIAL M2X0.25 P1 1.75 1.77 SPP2.0B 2.5P 42 - 4.5 12 27 3 2.5 5 2 001 )
THREADS, P1 2.05 2.07 SPP2.3B 2.5P 42 - 4.5 12 27 3 2.5 5 2 001 f
GAUGES M2.3X0.25
P1 2.2 2.2 SPP2.5D 2.5P 46 - 6.3 14 29 3 2.5 5 2 001 )
M2.5X0.35
P1 2.3 2.3 SPP2.6D 2.5P 46 - 6.3 14 29 3 2.5 5 2 001 f
M2.6X0.35
THREAD P1 2.7 2.7 SPP3.0D 2.5P 46 - 6.5 14 26 4 3.2 6 3 001 )
M3X0.35
MILLS P1 3.2 3.2 SPP3.5D 2.5P 52 - 6.5 16 29 5 4 7 3 001 f
M3.5X0.35
P1 3.5 3.56 SPP4.0G 2.5P 52 - 9 17 29 5 4 7 3 001 )
M4X0.5
P1 4 4.06 SPP4.5G 2.5P 60 - 9 21 33 5.5 4.5 7 3 001 f
M4.5X0.5
DIES M5X0.75 P2 4.3 4.33 SPQ5.0J 2.5P 60 - 13 22 33 5.5 4.5 7 3 001 f
P1 4.5 4.56 SPP5.0G 2.5P 60 - 9 22 33 5.5 4.5 7 3 001 )
M5X0.5
P1 5 5.06 SPP5.5G 2.5P 62 - 9 26 33 6 4.5 7 3 001 f
M5.5X0.5
CENTER P2 5.3 5.33 SPQ6.0J 2.5P 62 - 15 26 33 6 4.5 7 3 001 )
DRILLS M6X0.75 P3(P2+20) 5.3 5.33 SPR6.0J 2.5P 62 - 15 26 33 6 4.5 7 3 001 f
P1 5.5 5.56 SPP6.0G 2.5P 62 - 9 26 33 6 4.5 7 3 001 )
P2(P1+15) 5.5 5.56 SPQ6.0G 2.5P 62 - 9 26 33 6 4.5 7 3 001 f
M6X0.5
Technical P3(P1+30) 5.5 5.56 SPR6.0G 2.5P 62 - 9 26 33 6 4.5 7 3 001 f
info
