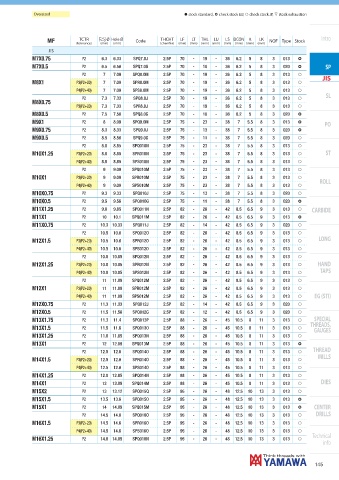

Page 147 - Yamawa_European_Catalogue_YEU23

Oversized h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
MF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
JIS
P2 6.3 6.33 SPQ7.0J 2.5P 70 - 19 - 36 6.2 5 8 3 013 )
M7X0.75
P2 6.5 6.56 SPQ7.0G 2.5P 70 - 10 - 36 6.2 5 8 3 020 ) SP
M7X0.5
P2 7 7.09 SPQ8.0M 2.5P 70 - 19 - 36 6.2 5 8 3 013 f
JIS
P3(P2+20) 7 7.09 SPR8.0M 2.5P 70 - 19 - 36 6.2 5 8 3 013 f
M8X1
P4(P2+40) 7 7.09 SPS8.0M 2.5P 70 - 19 - 36 6.2 5 8 3 013 f
SL
P2 7.3 7.33 SPQ8.0J 2.5P 70 - 19 - 36 6.2 5 8 3 013 f
P3(P2+20) 7.3 7.33 SPR8.0J 2.5P 70 - 19 - 36 6.2 5 8 3 013 f
M8X0.75
P2 7.5 7.56 SPQ8.0G 2.5P 70 - 10 - 36 6.2 5 8 3 020 )
M8X0.5
P2 8 8.09 SPQ9.0M 2.5P 75 - 23 - 38 7 5.5 8 3 013 )
M9X1 PO
P2 8.3 8.33 SPQ9.0J 2.5P 75 - 13 - 38 7 5.5 8 3 020 )
M9X0.75
P2 8.5 8.56 SPQ9.0G 2.5P 75 - 11 - 38 7 5.5 8 3 020 f
M9X0.5
P2 8.8 8.85 SPQ010N 2.5P 75 - 23 - 38 7 5.5 8 3 013 f
P3(P2+20) 8.8 8.85 SPR010N 2.5P 75 - 23 - 38 7 5.5 8 3 013 f ST
M10X1.25
P4(P2+40) 8.8 8.85 SPS010N 2.5P 75 - 23 - 38 7 5.5 8 3 013 f
P2 9 9.09 SPQ010M 2.5P 75 - 23 - 38 7 5.5 8 3 013 f
P3(P2+20) 9 9.09 SPR010M 2.5P 75 - 23 - 38 7 5.5 8 3 013 f
ROLL
M10X1
P4(P2+40) 9 9.09 SPS010M 2.5P 75 - 23 - 38 7 5.5 8 3 013 f
P2 9.3 9.33 SPQ010J 2.5P 75 - 13 - 38 7 5.5 8 3 020 f
M10X0.75
P2 9.5 9.56 SPQ010G 2.5P 75 - 11 - 38 7 5.5 8 3 020 )
M10X0.5
P2 9.8 9.85 SPQ011N 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
M11X1.25 CARBIDE
P2 10 10.1 SPQ011M 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 )
M11X1
P2 10.3 10.33 SPQ011J 2.5P 82 - 14 - 42 8.5 6.5 9 3 020 f
M11X0.75
P2 10.5 10.6 SPQ012O 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
LONG
P3(P2+20) 10.5 10.6 SPR012O 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
M12X1.5
P4(P2+40) 10.5 10.6 SPS012O 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
P2 10.8 10.85 SPQ012N 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
P3(P2+20) 10.8 10.85 SPR012N 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f HAND
M12X1.25
P4(P2+40) 10.8 10.85 SPS012N 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f TAPS
P2 11 11.09 SPQ012M 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
P3(P2+20) 11 11.09 SPR012M 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
M12X1
P4(P2+40) 11 11.09 SPS012M 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f EG (STI)
P2 11.3 11.33 SPQ012J 2.5P 82 - 14 - 42 8.5 6.5 9 3 020 f
M12X0.75
P2 11.5 11.56 SPQ012G 2.5P 82 - 12 - 42 8.5 6.5 9 3 020 f
M12X0.5
P2 11.3 11.4 SPQ013P 2.5P 88 - 26 - 45 10.5 8 11 3 013 f SPECIAL
THREADS,
M13X1.75
P2 11.5 11.6 SPQ013O 2.5P 88 - 26 - 45 10.5 8 11 3 013 f
GAUGES
M13X1.5
P2 11.8 11.85 SPQ013N 2.5P 88 - 26 - 45 10.5 8 11 3 013 f
M13X1.25
P2 12 12.09 SPQ013M 2.5P 88 - 26 - 45 10.5 8 11 3 013 )
M13X1
P2 12.5 12.6 SPQ014O 2.5P 88 - 26 - 45 10.5 8 11 3 013 f THREAD
MILLS
P3(P2+20) 12.5 12.6 SPR014O 2.5P 88 - 26 - 45 10.5 8 11 3 013 f
M14X1.5
P4(P2+40) 12.5 12.6 SPS014O 2.5P 88 - 26 - 45 10.5 8 11 3 013 f
P2 12.8 12.85 SPQ014N 2.5P 88 - 26 - 45 10.5 8 11 3 013 f
M14X1.25
P2 13 13.09 SPQ014M 2.5P 88 - 26 - 45 10.5 8 11 3 013 f DIES
M14X1
P2 13 13.12 SPQ015Q 2.5P 95 - 26 - 48 12.5 10 13 3 013 f
M15X2
P2 13.5 13.6 SPQ015O 2.5P 95 - 26 - 48 12.5 10 13 3 013 )
M15X1.5
P2 14 14.09 SPQ015M 2.5P 95 - 26 - 48 12.5 10 13 3 013 ) CENTER
M15X1
P2 14.5 14.6 SPQ016O 2.5P 95 - 26 - 48 12.5 10 13 3 013 f DRILLS
P3(P2+20) 14.5 14.6 SPR016O 2.5P 95 - 26 - 48 12.5 10 13 3 013 f
M16X1.5
P4(P2+40) 14.5 14.6 SPS016O 2.5P 95 - 26 - 48 12.5 10 13 3 013 f
Technical
P2 14.8 14.85 SPQ016N 2.5P 95 - 26 - 48 12.5 10 13 3 013 f
info
M16X1.25
