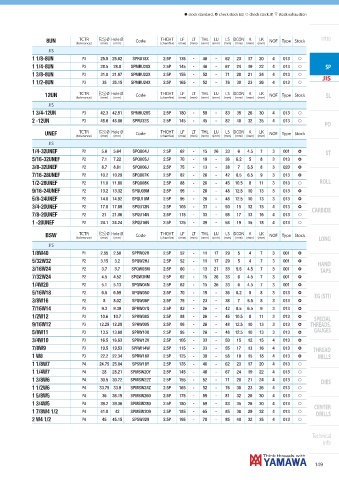

Page 151 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
8UN (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
JIS
P3 25.5 25.62 SPRU18X 2.5P 135 - 46 - 62 23 17 20 4 013 f
1 1/8-8UN
P3 28.5 28.8 SPMRU20X 2.5P 145 - 46 - 67 24 19 22 4 013 f SP
1 1/4-8UN
P3 31.8 31.97 SPMRU22X 2.5P 155 - 52 - 71 28 21 24 4 013 f
JIS
1 3/8-8UN
P3 35 35.15 SPMRU24X 2.5P 165 - 52 - 76 30 23 26 4 013 f
1 1/2-8UN
TCTR Ø Hole Ø THCHT LF LT THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
12UN Code NOF Type Stock SL
JIS
P3 42.3 42.51 SPMRU28S 2.5P 180 - 59 - 83 35 26 30 4 013 f
1 3/4-12UN
P3 48.6 48.86 SPRU32S 2.5P 145 - 45 - 82 40 32 35 4 013 f
PO
2 -12UN
TCTR Ø Hole Ø THCHT LF LT THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
UNEF Code NOF Type Stock
JIS
P2 5.6 5.64 SPQU04J 2.5P 62 - 15 26 33 6 4.5 7 3 001 )
1/4-32UNEF ST
P2 7.1 7.22 SPQU05J 2.5P 70 - 19 - 36 6.2 5 8 3 013 )
5/16-32UNEF
P2 8.7 8.81 SPQU06J 2.5P 75 - 13 - 38 7 5.5 8 3 020 )
3/8-32UNEF
P2 10.2 10.29 SPQU07K 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 )
7/16-28UNEF
P2 11.8 11.88 SPQU08K 2.5P 88 - 26 - 45 10.5 8 11 3 013 f ROLL
1/2-28UNEF
P2 13.2 13.32 SPQU09M 2.5P 95 - 26 - 48 12.5 10 13 3 013 )
9/16-24UNEF
P2 14.8 14.92 SPQU10M 2.5P 95 - 26 - 48 12.5 10 13 3 013 )
5/8-24UNEF
P2 17.8 17.89 SPQU12N 2.5P 105 - 33 - 50 15 12 15 4 013 )
CARBIDE
3/4-20UNEF
P2 21 21.06 SPQU14N 2.5P 115 - 33 - 55 17 13 16 4 013 f
7/8-20UNEF
P2 24.1 24.24 SPQU16N 2.5P 125 - 39 - 58 19 15 18 4 013 f
1 -20UNEF
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
BSW (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) LONG
JIS
P1 2.55 2.56 SPPW02H 2.5P 52 - 11 17 29 5 4 7 3 001 )
1/8W40
P2 3.15 3.2 SPQW2HJ 2.5P 52 - 11 17 29 5 4 7 3 001 )
HAND
5/32W32
P2 3.7 3.7 SPQW03M 2.5P 60 - 13 21 33 5.5 4.5 7 3 001 )
3/16W24 TAPS
P2 4.5 4.52 SPQW3HM 2.5P 62 - 15 26 33 6 4.5 7 3 001 )
7/32W24
P2 5.1 5.13 SPQW04N 2.5P 62 - 15 26 33 6 4.5 7 3 001 )
1/4W20
P2 6.5 6.59 SPQW05O 2.5P 70 - 19 - 36 6.2 5 8 3 013 )
EG (STI)
5/16W18
P2 8 8.02 SPQW06P 2.5P 75 - 23 - 38 7 5.5 8 3 013 )
3/8W16
P3 9.3 9.39 SPRW07Q 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 )
7/16W14
P3 10.6 10.7 SPRW08S 2.5P 88 - 26 - 45 10.5 8 11 3 013 )
SPECIAL
1/2W12
P3 12.25 12.29 SPRW09S 2.5P 95 - 26 - 48 12.5 10 13 3 013 ) THREADS,
9/16W12
P3 13.5 13.68 SPRW10U 2.5P 95 - 26 - 48 12.5 10 13 3 013 ) GAUGES
5/8W11
P3 16.5 16.63 SPRW12V 2.5P 105 - 33 - 50 15 12 15 4 013 )
3/4W10
P3 19.5 19.53 SPRW14W 2.5P 115 - 33 - 55 17 13 16 4 013 )
7/8W9 THREAD
P3 22.2 22.34 SPRW16X 2.5P 125 - 39 - 58 19 15 18 4 013 ) MILLS
1 W8
P4 24.75 25.04 SPSW18Y 2.5P 135 - 46 - 62 23 17 20 4 013 f
1 1/8W7
P4 28 28.21 SPMSW20Y 2.5P 145 - 46 - 67 24 19 22 4 013 f
1 1/4W7
P4 30.5 30.72 SPMSW22Z 2.5P 155 - 52 - 71 28 21 24 4 013 f
1 3/8W6 DIES
P4 33.75 33.9 SPMSW24Z 2.5P 165 - 52 - 76 30 23 26 4 013 f
1 1/2W6
P4 36 36.19 SPMSW260 2.5P 175 - 59 - 81 32 26 30 4 013 f
1 5/8W5
P4 39.2 39.36 SPMSW280 2.5P 180 - 59 - 83 35 26 30 4 013 f
CENTER
1 3/4W5
P4 41.8 42 SPMSW309 2.5P 185 - 65 - 85 38 29 32 4 013 f
1 7/8W4 1/2 DRILLS
P4 45 45.15 SPSW329 2.5P 195 - 70 - 85 40 32 35 4 013 f
2 W4 1/2
