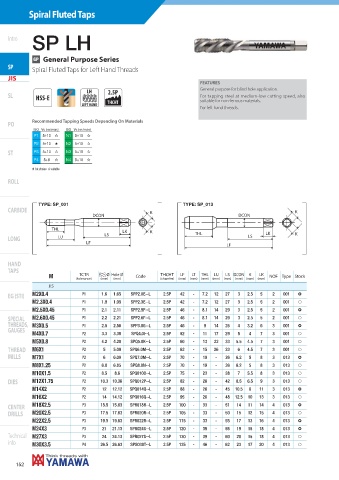

Page 154 - Yamawa_European_Catalogue_YEU23

Spiral Fluted Taps

SP LH
Intro

GP General Purpose Series
SP
Spiral Fluted Taps for Left Hand Threads
JIS
FEATURES
General purpose for blind hole application.
LH 2.5P
SL HSS-E For tapping steel at medium-low cutting speed, also
THCHT suitable for non-ferrous materials.
LEFT HAND
For left hand threads.
Recommended Tapping Speeds Depending On Materials
PO
ISO Vc (m/min) ISO Vc (m/min)
P1 5÷10 , N1 5÷10 ,
P2 5÷10 + N2 5÷10 ,
ST P3 5÷10 , N3 5÷10 ,
P4 5÷8 , N4 5÷10 ,
+ 1st choice , suitable
ROLL

JIS-SP LH
TYPE: SP_001 TYPE: SP_013
CARBIDE K K
DCON DCON

THL LK K
LS THL LS LK K
LONG LU
LF
LF

HAND
TAPS
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
JIS
EG (STI) M2X0.4 P1 1.6 1.65 SPP2.0E--L 2.5P 42 - 7.2 12 27 3 2.5 5 2 001 )
P1 1.9 1.95 SPP2.3E--L 2.5P 42 - 7.2 12 27 3 2.5 5 2 001 f
M2.3X0.4
P1 2.1 2.11 SPP2.5F--L 2.5P 46 - 8.1 14 29 3 2.5 5 2 001 )
M2.5X0.45
SPECIAL M2.6X0.45 P1 2.2 2.21 SPP2.6F--L 2.5P 46 - 8.1 14 29 3 2.5 5 2 001 f
P1 2.5 2.56 SPP3.0G--L 2.5P 46 - 9 14 26 4 3.2 6 3 001 )
THREADS, M3X0.5
GAUGES
P2 3.3 3.38 SPQ4.0I--L 2.5P 52 - 11 17 29 5 4 7 3 001 f
M4X0.7
P2 4.2 4.28 SPQ5.0K--L 2.5P 60 - 13 22 33 5.5 4.5 7 3 001 f
M5X0.8
THREAD M6X1 P2 5 5.09 SPQ6.0M--L 2.5P 62 - 15 26 33 6 4.5 7 3 001 f
MILLS P2 6 6.09 SPQ7.0M--L 2.5P 70 - 19 - 36 6.2 5 8 3 013 )
M7X1
P2 6.8 6.85 SPQ8.0N--L 2.5P 70 - 19 - 36 6.2 5 8 3 013 f
M8X1.25
P2 8.5 8.6 SPQ010O--L 2.5P 75 - 23 - 38 7 5.5 8 3 013 f
M10X1.5
DIES M12X1.75 P2 10.3 10.36 SPQ012P--L 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
P2 12 12.12 SPQ014Q--L 2.5P 88 - 26 - 45 10.5 8 11 3 013 )
M14X2
P2 14 14.12 SPQ016Q--L 2.5P 95 - 26 - 48 12.5 10 13 3 013 f
M16X2
CENTER M18X2.5 P3 15.5 15.63 SPR018R--L 2.5P 100 - 33 - 51 14 11 14 4 013 )
DRILLS M20X2.5 P3 17.5 17.63 SPR020R--L 2.5P 105 - 33 - 50 15 12 15 4 013 f
P3 19.5 19.63 SPR022R--L 2.5P 115 - 33 - 55 17 13 16 4 013 )
M22X2.5
P3 21 21.13 SPR024S--L 2.5P 120 - 39 - 55 19 15 18 4 013 )
M24X3
P3 24 24.13 SPR027S--L 2.5P 130 - 39 - 60 20 15 18 4 013 f
Technical M27X3
info P4 26.5 26.63 SPS030T--L 2.5P 135 - 46 - 62 23 17 20 4 013 f
M30X3.5
