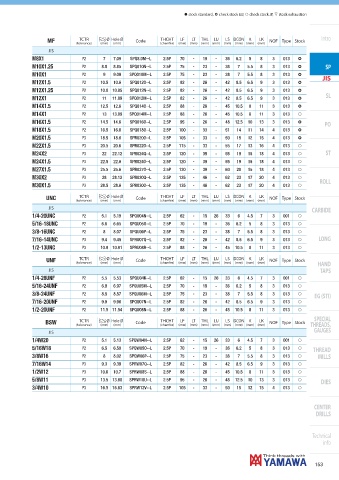

Page 155 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
MF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
JIS
P2 7 7.09 SPQ8.0M--L 2.5P 70 - 19 - 36 6.2 5 8 3 013 )
M8X1
P2 8.8 8.85 SPQ010N--L 2.5P 75 - 23 - 38 7 5.5 8 3 013 ) SP
M10X1.25
P2 9 9.09 SPQ010M--L 2.5P 75 - 23 - 38 7 5.5 8 3 013 )
JIS
M10X1
P2 10.5 10.6 SPQ012O--L 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 )
M12X1.5
P2 10.8 10.85 SPQ012N--L 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 )
M12X1.25
SL
P2 11 11.09 SPQ012M--L 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 )
M12X1
P2 12.5 12.6 SPQ014O--L 2.5P 88 - 26 - 45 10.5 8 11 3 013 )
M14X1.5
P2 13 13.09 SPQ014M--L 2.5P 88 - 26 - 45 10.5 8 11 3 013 f
M14X1
P2 14.5 14.6 SPQ016O--L 2.5P 95 - 26 - 48 12.5 10 13 3 013 )
M16X1.5 PO
P2 16.5 16.6 SPQ018O--L 2.5P 100 - 33 - 51 14 11 14 4 013 )
M18X1.5
P3 18.5 18.6 SPR020O--L 2.5P 105 - 33 - 50 15 12 15 4 013 )
M20X1.5
P3 20.5 20.6 SPR022O--L 2.5P 115 - 33 - 55 17 13 16 4 013 f
M22X1.5
P3 22 22.12 SPR024Q--L 2.5P 120 - 39 - 55 19 15 18 4 013 f ST
M24X2
P3 22.5 22.6 SPR024O--L 2.5P 120 - 39 - 55 19 15 18 4 013 f
M24X1.5
P3 25.5 25.6 SPR027O--L 2.5P 130 - 39 - 60 20 15 18 4 013 f
M27X1.5
P3 28 28.12 SPR030Q--L 2.5P 135 - 46 - 62 23 17 20 4 013 f
ROLL
M30X2
P3 28.5 28.6 SPR030O--L 2.5P 135 - 46 - 62 23 17 20 4 013 f
M30X1.5
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
UNC (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
JIS
CARBIDE
P2 5.1 5.19 SPQU04N--L 2.5P 62 - 15 26 33 6 4.5 7 3 001 f
1/4-20UNC
P2 6.6 6.65 SPQU05O--L 2.5P 70 - 19 - 36 6.2 5 8 3 013 f
5/16-18UNC
P2 8 8.07 SPQU06P--L 2.5P 75 - 23 - 38 7 5.5 8 3 013 f
3/8-16UNC
P3 9.4 9.45 SPRU07Q--L 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f LONG
7/16-14UNC
P3 10.9 10.91 SPRU08R--L 2.5P 88 - 26 - 45 10.5 8 11 3 013 f
1/2-13UNC
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
HAND
UNF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
JIS TAPS
P2 5.5 5.53 SPQU04K--L 2.5P 62 - 15 26 33 6 4.5 7 3 001 f
1/4-28UNF
P2 6.9 6.97 SPQU05M--L 2.5P 70 - 19 - 36 6.2 5 8 3 013 f
5/16-24UNF
P2 8.5 8.57 SPQU06M--L 2.5P 75 - 23 - 38 7 5.5 8 3 013 f
3/8-24UNF EG (STI)
P2 9.9 9.96 SPQU07N--L 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
7/16-20UNF
P2 11.5 11.54 SPQU08N--L 2.5P 88 - 26 - 45 10.5 8 11 3 013 f
1/2-20UNF
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock SPECIAL
BSW (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) THREADS,
GAUGES
JIS
P2 5.1 5.13 SPQW04N--L 2.5P 62 - 15 26 33 6 4.5 7 3 001 f
1/4W20
P2 6.5 6.59 SPQW05O--L 2.5P 70 - 19 - 36 6.2 5 8 3 013 f
5/16W18 THREAD
P2 8 8.02 SPQW06P--L 2.5P 75 - 23 - 38 7 5.5 8 3 013 f MILLS
3/8W16
P3 9.3 9.39 SPRW07Q--L 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
7/16W14
P3 10.6 10.7 SPRW08S--L 2.5P 88 - 26 - 45 10.5 8 11 3 013 f
1/2W12
P3 13.5 13.68 SPRW10U--L 2.5P 95 - 26 - 48 12.5 10 13 3 013 f
5/8W11 DIES
P3 16.5 16.63 SPRW12V--L 2.5P 105 - 33 - 50 15 12 15 4 013 f
3/4W10
