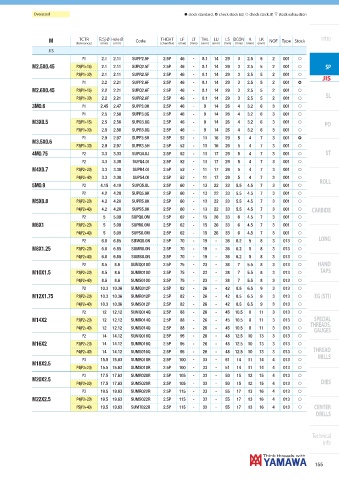

Page 157 - Yamawa_European_Catalogue_YEU23

Oversized h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
JIS
P1 2.1 2.11 SUPP2.5F 2.5P 46 - 8.1 14 29 3 2.5 5 2 001 f
P2(P1+15) 2.1 2.11 SUPQ2.5F 2.5P 46 - 8.1 14 29 3 2.5 5 2 001 f SP
M2.5X0.45
P3(P1+30) 2.1 2.11 SUPR2.5F 2.5P 46 - 8.1 14 29 3 2.5 5 2 001 f
JIS
P1 2.2 2.21 SUPP2.6F 2.5P 46 - 8.1 14 29 3 2.5 5 2 001 )
P2(P1+15) 2.2 2.21 SUPQ2.6F 2.5P 46 - 8.1 14 29 3 2.5 5 2 001 f
M2.6X0.45
SL
P3(P1+30) 2.2 2.21 SUPR2.6F 2.5P 46 - 8.1 14 29 3 2.5 5 2 001 f
P1 2.45 2.47 SUPP3.0H 2.5P 46 - 9 14 26 4 3.2 6 3 001 f
3M0.6
P1 2.5 2.56 SUPP3.0G 2.5P 46 - 9 14 26 4 3.2 6 3 001 f
P2(P1+15) 2.5 2.56 SUPQ3.0G 2.5P 46 - 9 14 26 4 3.2 6 3 001 f
M3X0.5 PO
P3(P1+30) 2.5 2.56 SUPR3.0G 2.5P 46 - 9 14 26 4 3.2 6 3 001 f
P1 2.9 2.97 SUPP3.5H 2.5P 52 - 11 16 29 5 4 7 3 001 )
M3.5X0.6
P3(P1+30) 2.9 2.97 SUPR3.5H 2.5P 52 - 11 16 29 5 4 7 3 001 f
P2 3.3 3.33 SUPQ4.0J 2.5P 52 - 11 17 29 5 4 7 3 001 f ST
4M0.75
P2 3.3 3.38 SUPQ4.0I 2.5P 52 - 11 17 29 5 4 7 3 001 f
P3(P2+20) 3.3 3.38 SUPR4.0I 2.5P 52 - 11 17 29 5 4 7 3 001 f
M4X0.7
P4(P2+40) 3.3 3.38 SUPS4.0I 2.5P 52 - 11 17 29 5 4 7 3 001 f
ROLL
P2 4.15 4.19 SUPQ5.0L 2.5P 60 - 13 22 33 5.5 4.5 7 3 001 f
5M0.9
P2 4.2 4.28 SUPQ5.0K 2.5P 60 - 13 22 33 5.5 4.5 7 3 001 f
P3(P2+20) 4.2 4.28 SUPR5.0K 2.5P 60 - 13 22 33 5.5 4.5 7 3 001 f
M5X0.8
P4(P2+40) 4.2 4.28 SUPS5.0K 2.5P 60 - 13 22 33 5.5 4.5 7 3 001 f CARBIDE
P2 5 5.09 SUPQ6.0M 2.5P 62 - 15 26 33 6 4.5 7 3 001 f
P3(P2+20) 5 5.09 SUPR6.0M 2.5P 62 - 15 26 33 6 4.5 7 3 001 f
M6X1
P4(P2+40) 5 5.09 SUPS6.0M 2.5P 62 - 15 26 33 6 4.5 7 3 001 f
LONG
P2 6.8 6.85 SUMQ8.0N 2.5P 70 - 19 - 36 6.2 5 8 3 013 f
P3(P2+20) 6.8 6.85 SUMR8.0N 2.5P 70 - 19 - 36 6.2 5 8 3 013 f
M8X1.25
P4(P2+40) 6.8 6.85 SUMS8.0N 2.5P 70 - 19 - 36 6.2 5 8 3 013 f
P2 8.5 8.6 SUMQ010O 2.5P 75 - 23 - 38 7 5.5 8 3 013 f HAND
P3(P2+20) 8.5 8.6 SUMR010O 2.5P 75 - 23 - 38 7 5.5 8 3 013 f TAPS
M10X1.5
P4(P2+40) 8.5 8.6 SUMS010O 2.5P 75 - 23 - 38 7 5.5 8 3 013 f
P2 10.3 10.36 SUMQ012P 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
P3(P2+20) 10.3 10.36 SUMR012P 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f EG (STI)
M12X1.75
P4(P2+40) 10.3 10.36 SUMS012P 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
P2 12 12.12 SUMQ014Q 2.5P 88 - 26 - 45 10.5 8 11 3 013 f
P3(P2+20) 12 12.12 SUMR014Q 2.5P 88 - 26 - 45 10.5 8 11 3 013 f SPECIAL
THREADS,
M14X2
P4(P2+40) 12 12.12 SUMS014Q 2.5P 88 - 26 - 45 10.5 8 11 3 013 f
GAUGES
P2 14 14.12 SUMQ016Q 2.5P 95 - 26 - 48 12.5 10 13 3 013 f
P3(P2+20) 14 14.12 SUMR016Q 2.5P 95 - 26 - 48 12.5 10 13 3 013 f
M16X2
P4(P2+40) 14 14.12 SUMS016Q 2.5P 95 - 26 - 48 12.5 10 13 3 013 f THREAD
MILLS
P3 15.5 15.63 SUMR018R 2.5P 100 - 33 - 51 14 11 14 4 013 f
M18X2.5
P4(P3+20) 15.5 15.63 SUMS018R 2.5P 100 - 33 - 51 14 11 14 4 013 f
P3 17.5 17.63 SUMR020R 2.5P 105 - 33 - 50 15 12 15 4 013 f
P4(P3+20) 17.5 17.63 SUMS020R 2.5P 105 - 33 - 50 15 12 15 4 013 f
M20X2.5 DIES
P3 19.5 19.63 SUMR022R 2.5P 115 - 33 - 55 17 13 16 4 013 f
P4(P3+20) 19.5 19.63 SUMS022R 2.5P 115 - 33 - 55 17 13 16 4 013 f
M22X2.5
P5(P3+40) 19.5 19.63 SUMT022R 2.5P 115 - 33 - 55 17 13 16 4 013 f CENTER
DRILLS
