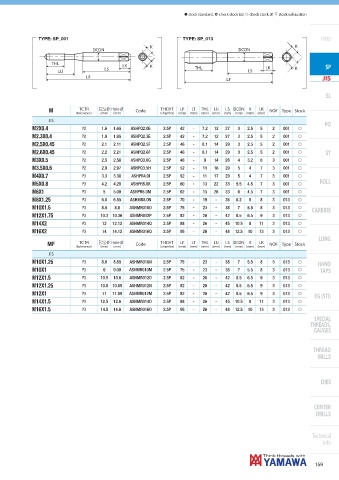

Page 161 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TYPE: SP_001 TYPE: SP_013 Intro
K K
DCON DCON
THL LK K SP
LU LS THL LS LK K
LF LF JIS

SL

TCTR Ø Hole Ø THCHT LF LT THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
M Code NOF Type Stock
JIS
PO
P2 1.6 1.65 ASHPQ2.0E 2.5P 42 - 7.2 12 27 3 2.5 5 2 001 f
M2X0.4
P2 1.9 1.95 ASHPQ2.3E 2.5P 42 - 7.2 12 27 3 2.5 5 2 001 f
M2.3X0.4
P2 2.1 2.11 ASHPQ2.5F 2.5P 46 - 8.1 14 29 3 2.5 5 2 001 f
M2.5X0.45
P2 2.2 2.21 ASHPQ2.6F 2.5P 46 - 8.1 14 29 3 2.5 5 2 001 f ST
M2.6X0.45
P2 2.5 2.56 ASHPQ3.0G 2.5P 46 - 9 14 26 4 3.2 6 3 001 f
M3X0.5
P2 2.9 2.97 ASHPQ3.5H 2.5P 52 - 11 16 29 5 4 7 3 001 f
M3.5X0.6
P3 3.3 3.38 ASHPR4.0I 2.5P 52 - 11 17 29 5 4 7 3 001 f
M4X0.7
ROLL
P3 4.2 4.28 ASHPR5.0K 2.5P 60 - 13 22 33 5.5 4.5 7 3 001 f
M5X0.8
P3 5 5.09 ASHPR6.0M 2.5P 62 - 15 26 33 6 4.5 7 3 001 f
M6X1
P3 6.8 6.85 ASHMR8.0N 2.5P 70 - 19 - 36 6.2 5 8 3 013 f
M8X1.25
P3 8.5 8.6 ASHMR010O 2.5P 75 - 23 - 38 7 5.5 8 3 013 f
CARBIDE
M10X1.5
P3 10.3 10.36 ASHMR012P 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
M12X1.75
P3 12 12.12 ASHMR014Q 2.5P 88 - 26 - 45 10.5 8 11 3 013 f
M14X2
P3 14 14.12 ASHMR016Q 2.5P 95 - 26 - 48 12.5 10 13 3 013 f
M16X2
LONG
TCTR Ø Hole Ø THCHT LF LT THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
MF Code NOF Type Stock
JIS
P3 8.8 8.85 ASHMR010N 2.5P 75 - 23 - 38 7 5.5 8 3 013 f
M10X1.25 HAND
P3 9 9.09 ASHMR010M 2.5P 75 - 23 - 38 7 5.5 8 3 013 f TAPS
M10X1
P3 10.5 10.6 ASHMR012O 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
M12X1.5
P3 10.8 10.85 ASHMR012N 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
M12X1.25
P3 11 11.09 ASHMR012M 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
EG (STI)
M12X1
P3 12.5 12.6 ASHMR014O 2.5P 88 - 26 - 45 10.5 8 11 3 013 f
M14X1.5
P3 14.5 14.6 ASHMR016O 2.5P 95 - 26 - 48 12.5 10 13 3 013 f
M16X1.5
SPECIAL
THREADS,
GAUGES
THREAD
MILLS
DIES

CENTER
DRILLS

Technical
info

159
