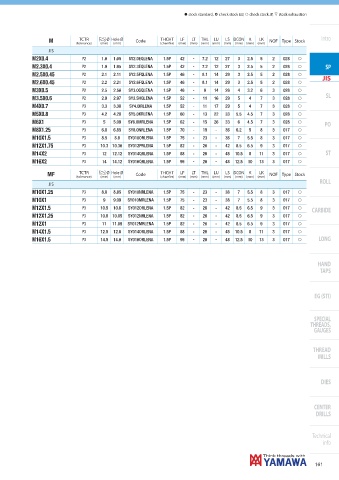

Page 163 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
JIS
P2 1.6 1.65 SY2.0EQLENA 1.5P 42 - 7.2 12 27 3 2.5 5 2 028 f
M2X0.4
P2 1.9 1.95 SY2.3EQLENA 1.5P 42 - 7.2 12 27 3 2.5 5 2 028 f SP
M2.3X0.4
P2 2.1 2.11 SY2.5FQLENA 1.5P 46 - 8.1 14 29 3 2.5 5 2 028 f
JIS
M2.5X0.45
P2 2.2 2.21 SY2.6FQLENA 1.5P 46 - 8.1 14 29 3 2.5 5 2 028 f
M2.6X0.45
P2 2.5 2.56 SY3.0GQLENA 1.5P 46 - 9 14 26 4 3.2 6 3 028 f
M3X0.5
SL
P2 2.9 2.97 SY3.5HQLENA 1.5P 52 - 11 16 29 5 4 7 3 028 f
M3.5X0.6
P3 3.3 3.38 SY4.0IRLENA 1.5P 52 - 11 17 29 5 4 7 3 028 f
M4X0.7
P3 4.2 4.28 SY5.0KRLENA 1.5P 60 - 13 22 33 5.5 4.5 7 3 028 f
M5X0.8
P3 5 5.09 SY6.0MRLENA 1.5P 62 - 15 26 33 6 4.5 7 3 028 f
M6X1 PO
P3 6.8 6.85 SY8.0NRLENA 1.5P 70 - 19 - 36 6.2 5 8 3 017 f
M8X1.25
P3 8.5 8.6 SY010ORLENA 1.5P 75 - 23 - 38 7 5.5 8 3 017 f
M10X1.5
P3 10.3 10.36 SY012PRLENA 1.5P 82 - 26 - 42 8.5 6.5 9 3 017 f
M12X1.75
P3 12 12.12 SY014QRLENA 1.5P 88 - 26 - 45 10.5 8 11 3 017 f ST
M14X2
P3 14 14.12 SY016QRLENA 1.5P 95 - 26 - 48 12.5 10 13 3 017 f
M16X2
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
MF
ROLL
JIS
P3 8.8 8.85 SY010NRLENA 1.5P 75 - 23 - 38 7 5.5 8 3 017 f
M10X1.25
P3 9 9.09 SY010MRLENA 1.5P 75 - 23 - 38 7 5.5 8 3 017 f
M10X1
P3 10.5 10.6 SY012ORLENA 1.5P 82 - 26 - 42 8.5 6.5 9 3 017 f
M12X1.5 CARBIDE
P3 10.8 10.85 SY012NRLENA 1.5P 82 - 26 - 42 8.5 6.5 9 3 017 f
M12X1.25
P3 11 11.09 SY012MRLENA 1.5P 82 - 26 - 42 8.5 6.5 9 3 017 f
M12X1
P3 12.5 12.6 SY014ORLENA 1.5P 88 - 26 - 45 10.5 8 11 3 017 f
M14X1.5
P3 14.5 14.6 SY016ORLENA 1.5P 95 - 26 - 48 12.5 10 13 3 017 f LONG
M16X1.5
