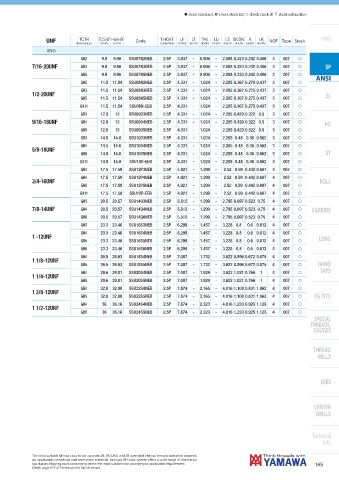

Page 167 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
UNF (tolerance) (mm) (mm) (chamfer) (inch) (inch) (inch) (inch) (inch) (inch) (inch) (inch)
ANSI
GH2 9.9 9.96 SSU07N2NEB 2.5P 3.937 - 0.906 - 2.008 0.323 0.242 0.406 3 007 f
GH3 9.9 9.96 SSU07N3NEB 2.5P 3.937 - 0.906 - 2.008 0.323 0.242 0.406 3 007 f SP
7/16-20UNF
GH5 9.9 9.96 SSU07N5NEB 2.5P 3.937 - 0.906 - 2.008 0.323 0.242 0.406 3 007 f
ANSI
GH2 11.5 11.54 SSU08N2NEB 2.5P 4.331 - 1.024 - 2.205 0.367 0.275 0.437 3 007 f
GH3 11.5 11.54 SSU08N3NEB 2.5P 4.331 - 1.024 - 2.205 0.367 0.275 0.437 3 007 f
SL
GH5 11.5 11.54 SSU08N5NEB 2.5P 4.331 - 1.024 - 2.205 0.367 0.275 0.437 3 007 f
1/2-20UNF
GH11 11.5 11.54 SSU08N-EEB 2.5P 4.331 - 1.024 - 2.205 0.367 0.275 0.437 3 007 f
GH3 12.9 13 SSU09O3NEB 2.5P 4.331 - 1.024 - 2.205 0.429 0.322 0.5 3 007 f
GH4 12.9 13 SSU09O4NEB 2.5P 4.331 - 1.024 - 2.205 0.429 0.322 0.5 3 007 f
9/16-18UNF PO
GH5 12.9 13 SSU09O5NEB 2.5P 4.331 - 1.024 - 2.205 0.429 0.322 0.5 3 007 f
GH3 14.5 14.6 SSU10O3NEB 2.5P 4.331 - 1.024 - 2.205 0.48 0.36 0.562 3 007 f
GH4 14.5 14.6 SSU10O4NEB 2.5P 4.331 - 1.024 - 2.205 0.48 0.36 0.562 3 007 f
GH5 14.5 14.6 SSU10O5NEB 2.5P 4.331 - 1.024 - 2.205 0.48 0.36 0.562 3 007 f ST
5/8-18UNF
GH11 14.5 14.6 SSU10O-EEB 2.5P 4.331 - 1.024 - 2.205 0.48 0.36 0.562 3 007 f
GH3 17.5 17.59 SSU12P3NEB 2.5P 4.921 - 1.299 - 2.52 0.59 0.442 0.687 4 007 f
GH4 17.5 17.59 SSU12P4NEB 2.5P 4.921 - 1.299 - 2.52 0.59 0.442 0.687 4 007 f
ROLL
3/4-16UNF
GH5 17.5 17.59 SSU12P5NEB 2.5P 4.921 - 1.299 - 2.52 0.59 0.442 0.687 4 007 f
GH11 17.5 17.59 SSU12P-EEB 2.5P 4.921 - 1.299 - 2.52 0.59 0.442 0.687 4 007 f
GH3 20.5 20.57 SSU14Q3NEB 2.5P 5.512 - 1.299 - 2.795 0.697 0.523 0.75 4 007 f
GH4 20.5 20.57 SSU14Q4NEB 2.5P 5.512 - 1.299 - 2.795 0.697 0.523 0.75 4 007 f
7/8-14UNF CARBIDE
GH6 20.5 20.57 SSU14Q6NEB 2.5P 5.512 - 1.299 - 2.795 0.697 0.523 0.75 4 007 f
GH3 23.3 23.46 SSU16S3NEB 2.5P 6.299 - 1.457 - 3.228 0.8 0.6 0.812 4 007 f
GH4 23.3 23.46 SSU16S4NEB 2.5P 6.299 - 1.457 - 3.228 0.8 0.6 0.812 4 007 f
LONG
GH5 23.3 23.46 SSU16S5NEB 2.5P 6.299 - 1.457 - 3.228 0.8 0.6 0.812 4 007 f
1 -12UNF
GH6 23.3 23.46 SSU16S6NEB 2.5P 6.299 - 1.457 - 3.228 0.8 0.6 0.812 4 007 f
GH4 26.5 26.63 SSU18S4NEB 2.5P 7.087 - 1.732 - 3.622 0.896 0.672 0.875 4 007 f
1 1/8-12UNF HAND
GH5 26.5 26.63 SSU18S5NEB 2.5P 7.087 - 1.732 - 3.622 0.896 0.672 0.875 4 007 f
GH4 29.6 29.81 SSU20S4NEB 2.5P 7.087 - 1.929 - 3.622 1.021 0.766 1 4 007 f TAPS
1 1/4-12UNF
GH5 29.6 29.81 SSU20S5NEB 2.5P 7.087 - 1.929 - 3.622 1.021 0.766 1 4 007 f
GH4 32.8 32.98 SSU22S4NEB 2.5P 7.874 - 2.165 - 4.016 1.108 0.831 1.062 4 007 f
GH5 32.8 32.98 SSU22S5NEB 2.5P 7.874 - 2.165 - 4.016 1.108 0.831 1.062 4 007 f EG (STI)
1 3/8-12UNF
GH4 36 36.16 SSU24S4NEB 2.5P 7.874 - 2.323 - 4.016 1.233 0.925 1.125 4 007 f
1 1/2-12UNF
GH5 36 36.16 SSU24S5NEB 2.5P 7.874 - 2.323 - 4.016 1.233 0.925 1.125 4 007 f
SPECIAL
THREADS,
GAUGES

THREAD
MILLS

DIES

CENTER
DRILLS

Technical
info

The most suitable GH tap class to cut accurate 2B, 3B (UNJ) and 2B oversized internal threads tolerance, depends
on application conditions and work-piece materials. Yamawa GH class system offers a wide range of alternative
tap classes allowing each customer to select the most suitable one according to application requirement. 165
Check page 673 of Technical info for full details.
