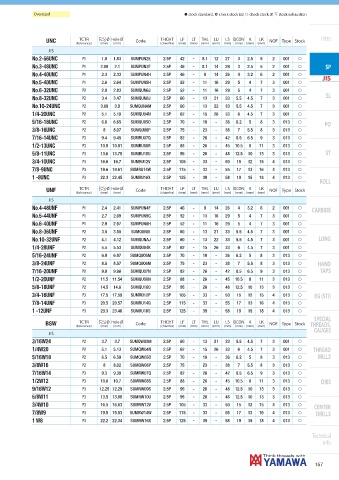

Page 159 - Yamawa_European_Catalogue_YEU23

Oversized h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
UNC (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
JIS
P1 1.8 1.83 SUMPUN2E 2.5P 42 - 8.1 12 27 3 2.5 5 2 001 f
No.2-56UNC
P1 2.09 2.1 SUMPUN3F 2.5P 46 - 8.1 14 29 3 2.5 5 2 001 f SP
No.3-48UNC
P1 2.3 2.33 SUMPUN4H 2.5P 46 - 9 14 26 4 3.2 6 2 001 f
JIS
No.4-40UNC
P1 2.6 2.64 SUMPUN5H 2.5P 52 - 11 16 29 5 4 7 3 001 f
No.5-40UNC
P2 2.8 2.83 SUMQUN6J 2.5P 52 - 11 16 29 5 4 7 3 001 f
No.6-32UNC
SL
P2 3.4 3.47 SUMQUN8J 2.5P 60 - 13 21 33 5.5 4.5 7 3 001 f
No.8-32UNC
P2 3.89 3.9 SUMQUNAM 2.5P 60 - 13 22 33 5.5 4.5 7 3 001 f
No.10-24UNC
P2 5.1 5.19 SUMQU04N 2.5P 62 - 15 26 33 6 4.5 7 3 001 f
1/4-20UNC
P2 6.6 6.65 SUMQU05O 2.5P 70 - 19 - 36 6.2 5 8 3 013 f
5/16-18UNC PO
P2 8 8.07 SUMQU06P 2.5P 75 - 23 - 38 7 5.5 8 3 013 f
3/8-16UNC
P3 9.4 9.45 SUMRU07Q 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
7/16-14UNC
P3 10.9 10.91 SUMRU08R 2.5P 88 - 26 - 45 10.5 8 11 3 013 f
1/2-13UNC
P3 13.6 13.75 SUMRU10U 2.5P 95 - 26 - 48 12.5 10 13 3 013 f ST
5/8-11UNC
P3 16.6 16.7 SUMRU12V 2.5P 105 - 33 - 50 15 12 15 4 013 f
3/4-10UNC
P3 19.6 19.61 SUMRU14W 2.5P 115 - 33 - 55 17 13 16 4 013 f
7/8-9UNC
P3 22.3 22.45 SUMRU16X 2.5P 125 - 39 - 58 19 15 18 4 013 f
1 -8UNC
ROLL
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
UNF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
JIS
P1 2.4 2.41 SUMPUN4F 2.5P 46 - 9 14 26 4 3.2 6 2 001 f
No.4-48UNF CARBIDE
P1 2.7 2.69 SUMPUN5G 2.5P 52 - 11 16 29 5 4 7 3 001 f
No.5-44UNF
P1 2.9 2.97 SUMPUN6H 2.5P 52 - 11 16 29 5 4 7 3 001 f
No.6-40UNF
P2 3.5 3.55 SUMQUN8I 2.5P 60 - 13 21 33 5.5 4.5 7 3 001 f
No.8-36UNF
P2 4.1 4.12 SUMQUNAJ 2.5P 60 - 13 22 33 5.5 4.5 7 3 001 f LONG
No.10-32UNF
P2 5.5 5.53 SUMQU04K 2.5P 62 - 15 26 33 6 4.5 7 3 001 f
1/4-28UNF
P2 6.9 6.97 SUMQU05M 2.5P 70 - 19 - 36 6.2 5 8 3 013 f
5/16-24UNF
P2 8.5 8.57 SUMQU06M 2.5P 75 - 23 - 38 7 5.5 8 3 013 f HAND
3/8-24UNF
P2 9.9 9.96 SUMQU07N 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f TAPS
7/16-20UNF
P2 11.5 11.54 SUMQU08N 2.5P 88 - 26 - 45 10.5 8 11 3 013 f
1/2-20UNF
P2 14.5 14.6 SUMQU10O 2.5P 95 - 26 - 48 12.5 10 13 3 013 f
5/8-18UNF
P3 17.5 17.59 SUMRU12P 2.5P 105 - 33 - 50 15 12 15 4 013 f
3/4-16UNF EG (STI)
P3 20.5 20.57 SUMRU14Q 2.5P 115 - 33 - 55 17 13 16 4 013 f
7/8-14UNF
P3 23.3 23.46 SUMRU16S 2.5P 125 - 39 - 58 19 15 18 4 013 f
1 -12UNF
SPECIAL
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
BSW (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) THREADS,
GAUGES
JIS
P2 3.7 3.7 SUMQW03M 2.5P 60 - 13 21 33 5.5 4.5 7 3 001 f
3/16W24
P2 5.1 5.13 SUMQW04N 2.5P 62 - 15 26 33 6 4.5 7 3 001 f THREAD
1/4W20
P2 6.5 6.59 SUMQW05O 2.5P 70 - 19 - 36 6.2 5 8 3 013 f MILLS
5/16W18
P2 8 8.02 SUMQW06P 2.5P 75 - 23 - 38 7 5.5 8 3 013 f
3/8W16
P3 9.3 9.39 SUMRW07Q 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
7/16W14
P3 10.6 10.7 SUMRW08S 2.5P 88 - 26 - 45 10.5 8 11 3 013 f DIES
1/2W12
P3 12.25 12.29 SUMRW09S 2.5P 95 - 26 - 48 12.5 10 13 3 013 f
9/16W12
P3 13.5 13.68 SUMRW10U 2.5P 95 - 26 - 48 12.5 10 13 3 013 f
5/8W11
P3 16.5 16.63 SUMRW12V 2.5P 105 - 33 - 50 15 12 15 4 013 f
3/4W10 CENTER
P3 19.5 19.53 SUMRW14W 2.5P 115 - 33 - 55 17 13 16 4 013 f
7/8W9 DRILLS
P3 22.2 22.34 SUMRW16X 2.5P 125 - 39 - 58 19 15 18 4 013 f
1 W8
Technical
info
157
