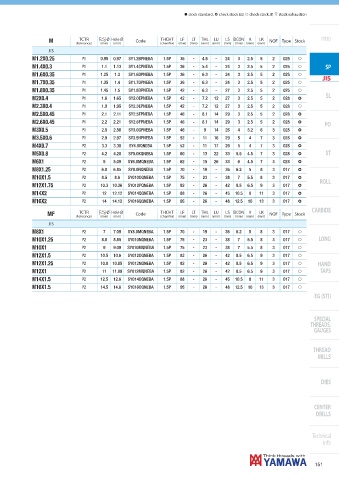

Page 153 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
JIS
P1 0.95 0.97 SY1.2BPNEBA 1.5P 36 - 4.5 - 24 3 2.5 5 2 025 f
M1.2X0.25
P1 1.1 1.13 SY1.4CPNEBA 1.5P 36 - 5.4 - 24 3 2.5 5 2 025 f SP
M1.4X0.3
P1 1.25 1.3 SY1.6DPNEBA 1.5P 36 - 6.3 - 24 3 2.5 5 2 025 f
JIS
M1.6X0.35
P1 1.35 1.4 SY1.7DPNEBA 1.5P 36 - 6.3 - 24 3 2.5 5 2 025 f
M1.7X0.35
P1 1.45 1.5 SY1.8DPNEBA 1.5P 42 - 6.3 - 27 3 2.5 5 2 025 f
M1.8X0.35
SL
P1 1.6 1.65 SY2.0EPNEBA 1.5P 42 - 7.2 12 27 3 2.5 5 2 028 )
M2X0.4
P1 1.9 1.95 SY2.3EPNEBA 1.5P 42 - 7.2 12 27 3 2.5 5 2 028 f
M2.3X0.4
P1 2.1 2.11 SY2.5FPNEBA 1.5P 46 - 8.1 14 29 3 2.5 5 2 028 )
M2.5X0.45
P1 2.2 2.21 SY2.6FPNEBA 1.5P 46 - 8.1 14 29 3 2.5 5 2 028 )
M2.6X0.45 PO
P1 2.5 2.56 SY3.0GPNEBA 1.5P 46 - 9 14 26 4 3.2 6 3 028 )
M3X0.5
P1 2.9 2.97 SY3.5HPNEBA 1.5P 52 - 11 16 29 5 4 7 3 028 )
M3.5X0.6
P2 3.3 3.38 SY4.0IQNEBA 1.5P 52 - 11 17 29 5 4 7 3 028 )
M4X0.7
P2 4.2 4.28 SY5.0KQNEBA 1.5P 60 - 13 22 33 5.5 4.5 7 3 028 ) ST
M5X0.8
P2 5 5.09 SY6.0MQNEBA 1.5P 62 - 15 26 33 6 4.5 7 3 028 )
M6X1
P2 6.8 6.85 SY8.0NQNEBA 1.5P 70 - 19 - 36 6.2 5 8 3 017 )
M8X1.25
P2 8.5 8.6 SY010OQNEBA 1.5P 75 - 23 - 38 7 5.5 8 3 017 )
ROLL
M10X1.5
P2 10.3 10.36 SY012PQNEBA 1.5P 82 - 26 - 42 8.5 6.5 9 3 017 )
M12X1.75
P2 12 12.12 SY014QQNEBA 1.5P 88 - 26 - 45 10.5 8 11 3 017 )
M14X2
P2 14 14.12 SY016QQNEBA 1.5P 95 - 26 - 48 12.5 10 13 3 017 )
M16X2
CARBIDE
TCTR Ø Hole Ø THCHT LF LT THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
MF Code NOF Type Stock
JIS
P2 7 7.09 SY8.0MQNEBA 1.5P 70 - 19 - 36 6.2 5 8 3 017 f
M8X1
P2 8.8 8.85 SY010NQNEBA 1.5P 75 - 23 - 38 7 5.5 8 3 017 f LONG
M10X1.25
P2 9 9.09 SY010MQNEBA 1.5P 75 - 23 - 38 7 5.5 8 3 017 f
M10X1
P2 10.5 10.6 SY012OQNEBA 1.5P 82 - 26 - 42 8.5 6.5 9 3 017 f
M12X1.5
P2 10.8 10.85 SY012NQNEBA 1.5P 82 - 26 - 42 8.5 6.5 9 3 017 f HAND
M12X1.25
P2 11 11.09 SY012MQNEBA 1.5P 82 - 26 - 42 8.5 6.5 9 3 017 f TAPS
M12X1
P2 12.5 12.6 SY014OQNEBA 1.5P 88 - 26 - 45 10.5 8 11 3 017 f
M14X1.5
P2 14.5 14.6 SY016OQNEBA 1.5P 95 - 26 - 48 12.5 10 13 3 017 f
M16X1.5
