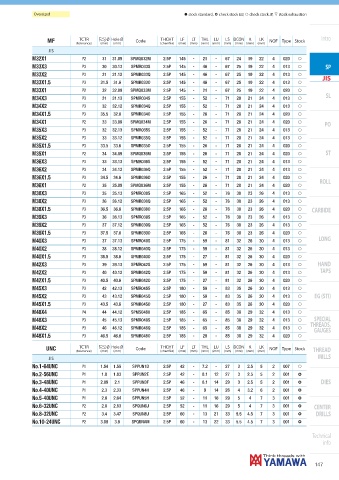

Oversized h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
MF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
JIS
P2 31 31.09 SPMQ032M 2.5P 145 - 21 - 67 24 19 22 4 020 f
M32X1
P3 30 30.13 SPMR033S 2.5P 145 - 46 - 67 25 19 22 4 013 f SP
M33X3
P3 31 31.12 SPMR033Q 2.5P 145 - 46 - 67 25 19 22 4 013 f
JIS
M33X2
P3 31.5 31.6 SPMR033O 2.5P 145 - 46 - 67 25 19 22 4 013 f
M33X1.5
P2 32 32.09 SPMQ033M 2.5P 145 - 21 - 67 25 19 22 4 020 f
M33X1
SL
P3 31 31.13 SPMR034S 2.5P 155 - 52 - 71 28 21 24 4 013 f
M34X3
P3 32 32.12 SPMR034Q 2.5P 155 - 52 - 71 28 21 24 4 013 f
M34X2
P3 35.5 32.6 SPMR034O 2.5P 155 - 26 - 71 28 21 24 4 020 f
M34X1.5
P2 33 33.09 SPMQ034M 2.5P 155 - 26 - 71 28 21 24 4 020 f
M34X1 PO
P3 32 32.13 SPMR035S 2.5P 155 - 52 - 71 28 21 24 4 013 f
M35X3
P3 33 33.12 SPMR035Q 2.5P 155 - 52 - 71 28 21 24 4 013 f
M35X2
P3 33.5 33.6 SPMR035O 2.5P 155 - 26 - 71 28 21 24 4 020 f
M35X1.5
P2 34 34.09 SPMQ035M 2.5P 155 - 26 - 71 28 21 24 4 020 f ST
M35X1
P3 33 33.13 SPMR036S 2.5P 155 - 52 - 71 28 21 24 4 013 f
M36X3
P3 34 34.12 SPMR036Q 2.5P 155 - 52 - 71 28 21 24 4 013 f
M36X2
P3 34.5 34.6 SPMR036O 2.5P 155 - 26 - 71 28 21 24 4 020 f
ROLL
M36X1.5
P2 35 35.09 SPMQ036M 2.5P 155 - 26 - 71 28 21 24 4 020 f
M36X1
P3 35 35.13 SPMR038S 2.5P 165 - 52 - 76 30 23 26 4 013 f
M38X3
P3 36 36.12 SPMR038Q 2.5P 165 - 52 - 76 30 23 26 4 013 f
M38X2
P3 36.5 36.6 SPMR038O 2.5P 165 - 26 - 76 30 23 26 4 020 f
M38X1.5 CARBIDE
P3 36 36.13 SPMR039S 2.5P 165 - 52 - 76 30 23 26 4 013 f
M39X3
P3 37 37.12 SPMR039Q 2.5P 165 - 52 - 76 30 23 26 4 013 f
M39X2
P3 37.5 37.6 SPMR039O 2.5P 165 - 26 - 76 30 23 26 4 020 f
M39X1.5
LONG
P3 37 37.13 SPMR040S 2.5P 175 - 59 - 81 32 26 30 4 013 f
M40X3
P3 38 38.12 SPMR040Q 2.5P 175 - 59 - 81 32 26 30 4 013 f
M40X2
P3 38.5 38.6 SPMR040O 2.5P 175 - 27 - 81 32 26 30 4 020 f
M40X1.5
P3 39 39.13 SPMR042S 2.5P 175 - 59 - 81 32 26 30 4 013 f HAND
M42X3
P3 40 40.12 SPMR042Q 2.5P 175 - 59 - 81 32 26 30 4 013 f TAPS
M42X2
P3 40.5 40.6 SPMR042O 2.5P 175 - 27 - 81 32 26 30 4 020 f
M42X1.5
P3 42 42.13 SPMR045S 2.5P 180 - 59 - 83 35 26 30 4 013 f
M45X3
P3 43 43.12 SPMR045Q 2.5P 180 - 59 - 83 35 26 30 4 013 f EG (STI)
M45X2
P3 43.5 43.6 SPMR045O 2.5P 180 - 27 - 83 35 26 30 4 020 f
M45X1.5
P4 44 44.12 SPMS048U 2.5P 185 - 65 - 85 38 29 32 4 013 f
M48X4
P3 45 45.13 SPMR048S 2.5P 185 - 65 - 85 38 29 32 4 013 f SPECIAL
THREADS,
M48X3
P3 46 46.12 SPMR048Q 2.5P 185 - 65 - 85 38 29 32 4 013 f
GAUGES
M48X2
P3 46.5 46.6 SPMR048O 2.5P 185 - 28 - 85 38 29 32 4 020 f
M48X1.5
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
UNC (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) THREAD
JIS MILLS
P1 1.54 1.55 SPPUN1D 2.5P 42 - 7.2 - 27 3 2.5 5 2 007 f
No.1-64UNC
P1 1.8 1.83 SPPUN2E 2.5P 42 - 8.1 12 27 3 2.5 5 2 001 )
No.2-56UNC
P1 2.09 2.1 SPPUN3F 2.5P 46 - 8.1 14 29 3 2.5 5 2 001 ) DIES
No.3-48UNC
P1 2.3 2.33 SPPUN4H 2.5P 46 - 9 14 26 4 3.2 6 2 001 )
No.4-40UNC
P1 2.6 2.64 SPPUN5H 2.5P 52 - 11 16 29 5 4 7 3 001 )
No.5-40UNC
P2 2.8 2.83 SPQUN6J 2.5P 52 - 11 16 29 5 4 7 3 001 ) CENTER
No.6-32UNC
P2 3.4 3.47 SPQUN8J 2.5P 60 - 13 21 33 5.5 4.5 7 3 001 ) DRILLS
No.8-32UNC
P2 3.89 3.9 SPQUNAM 2.5P 60 - 13 22 33 5.5 4.5 7 3 001 )
No.10-24UNC
