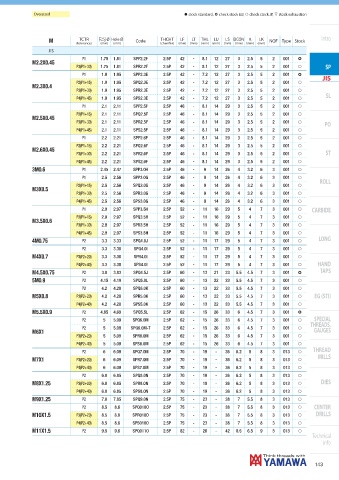

Oversized h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
JIS
P1 1.75 1.81 SPP2.2F 2.5P 42 - 8.1 12 27 3 2.5 5 2 001 )
M2.2X0.45
P3(P1+30) 1.75 1.81 SPR2.2F 2.5P 42 - 8.1 12 27 3 2.5 5 2 001 f SP
P1 1.9 1.95 SPP2.3E 2.5P 42 - 7.2 12 27 3 2.5 5 2 001 )
JIS
P2(P1+15) 1.9 1.95 SPQ2.3E 2.5P 42 - 7.2 12 27 3 2.5 5 2 001 f
P3(P1+30) 1.9 1.95 SPR2.3E 2.5P 42 - 7.2 12 27 3 2.5 5 2 001 f
M2.3X0.4
SL
P4(P1+45) 1.9 1.95 SPS2.3E 2.5P 42 - 7.2 12 27 3 2.5 5 2 001 f
P1 2.1 2.11 SPP2.5F 2.5P 46 - 8.1 14 29 3 2.5 5 2 001 f
P2(P1+15) 2.1 2.11 SPQ2.5F 2.5P 46 - 8.1 14 29 3 2.5 5 2 001 f
M2.5X0.45
P3(P1+30) 2.1 2.11 SPR2.5F 2.5P 46 - 8.1 14 29 3 2.5 5 2 001 f
PO
P4(P1+45) 2.1 2.11 SPS2.5F 2.5P 46 - 8.1 14 29 3 2.5 5 2 001 f
P1 2.2 2.21 SPP2.6F 2.5P 46 - 8.1 14 29 3 2.5 5 2 001 f
P2(P1+15) 2.2 2.21 SPQ2.6F 2.5P 46 - 8.1 14 29 3 2.5 5 2 001 f
M2.6X0.45
P3(P1+30) 2.2 2.21 SPR2.6F 2.5P 46 - 8.1 14 29 3 2.5 5 2 001 f ST
P4(P1+45) 2.2 2.21 SPS2.6F 2.5P 46 - 8.1 14 29 3 2.5 5 2 001 f
P1 2.45 2.47 SPP3.0H 2.5P 46 - 9 14 26 4 3.2 6 3 001 f
3M0.6
P1 2.5 2.56 SPP3.0G 2.5P 46 - 9 14 26 4 3.2 6 3 001 f
ROLL
P2(P1+15) 2.5 2.56 SPQ3.0G 2.5P 46 - 9 14 26 4 3.2 6 3 001 f
M3X0.5
P3(P1+30) 2.5 2.56 SPR3.0G 2.5P 46 - 9 14 26 4 3.2 6 3 001 f
P4(P1+45) 2.5 2.56 SPS3.0G 2.5P 46 - 9 14 26 4 3.2 6 3 001 f
P1 2.9 2.97 SPP3.5H 2.5P 52 - 11 16 29 5 4 7 3 001 f CARBIDE
P2(P1+15) 2.9 2.97 SPQ3.5H 2.5P 52 - 11 16 29 5 4 7 3 001 f
P3(P1+30) 2.9 2.97 SPR3.5H 2.5P 52 - 11 16 29 5 4 7 3 001 f
M3.5X0.6
P4(P1+45) 2.9 2.97 SPS3.5H 2.5P 52 - 11 16 29 5 4 7 3 001 f
LONG
P2 3.3 3.33 SPQ4.0J 2.5P 52 - 11 17 29 5 4 7 3 001 f
4M0.75
P2 3.3 3.38 SPQ4.0I 2.5P 52 - 11 17 29 5 4 7 3 001 f
P3(P2+20) 3.3 3.38 SPR4.0I 2.5P 52 - 11 17 29 5 4 7 3 001 f
M4X0.7
P4(P2+40) 3.3 3.38 SPS4.0I 2.5P 52 - 11 17 29 5 4 7 3 001 f HAND
P2 3.8 3.83 SPQ4.5J 2.5P 60 - 13 21 33 5.5 4.5 7 3 001 ) TAPS
M4.5X0.75
P2 4.15 4.19 SPQ5.0L 2.5P 60 - 13 22 33 5.5 4.5 7 3 001 f
5M0.9
P2 4.2 4.28 SPQ5.0K 2.5P 60 - 13 22 33 5.5 4.5 7 3 001 f
P3(P2+20) 4.2 4.28 SPR5.0K 2.5P 60 - 13 22 33 5.5 4.5 7 3 001 f EG (STI)
M5X0.8
P4(P2+40) 4.2 4.28 SPS5.0K 2.5P 60 - 13 22 33 5.5 4.5 7 3 001 f
P2 4.65 4.69 SPQ5.5L 2.5P 62 - 15 26 33 6 4.5 7 3 001 )
M5.5X0.9
P2 5 5.09 SPQ6.0M 2.5P 62 - 15 26 33 6 4.5 7 3 001 f SPECIAL
THREADS,
P2 5 5.09 SPQ6.0M-T 2.5P 62 - 15 26 33 6 4.5 7 3 001 f
GAUGES
M6X1
P3(P2+20) 5 5.09 SPR6.0M 2.5P 62 - 15 26 33 6 4.5 7 3 001 f
P4(P2+40) 5 5.09 SPS6.0M 2.5P 62 - 15 26 33 6 4.5 7 3 001 f
P2 6 6.09 SPQ7.0M 2.5P 70 - 19 - 36 6.2 5 8 3 013 f THREAD
MILLS
P3(P2+20) 6 6.09 SPR7.0M 2.5P 70 - 19 - 36 6.2 5 8 3 013 f
M7X1
P4(P2+40) 6 6.09 SPS7.0M 2.5P 70 - 19 - 36 6.2 5 8 3 013 f
P2 6.8 6.85 SPQ8.0N 2.5P 70 - 19 - 36 6.2 5 8 3 013 f
P3(P2+20) 6.8 6.85 SPR8.0N 2.5P 70 - 19 - 36 6.2 5 8 3 013 f DIES
M8X1.25
P4(P2+40) 6.8 6.85 SPS8.0N 2.5P 70 - 19 - 36 6.2 5 8 3 013 f
P2 7.8 7.85 SPQ9.0N 2.5P 75 - 23 - 38 7 5.5 8 3 013 f
M9X1.25
P2 8.5 8.6 SPQ010O 2.5P 75 - 23 - 38 7 5.5 8 3 013 f CENTER
P3(P2+20) 8.5 8.6 SPR010O 2.5P 75 - 23 - 38 7 5.5 8 3 013 f DRILLS
M10X1.5
P4(P2+40) 8.5 8.6 SPS010O 2.5P 75 - 23 - 38 7 5.5 8 3 013 f
P2 9.5 9.6 SPQ011O 2.5P 82 - 26 - 42 8.5 6.5 9 3 013 f
