h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

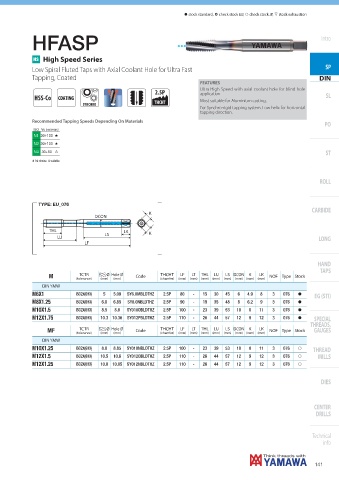

HFASP Intro

HS High Speed Series
Low Spiral Fluted Taps with Axial Coolant Hole for Ultra Fast SP
Tapping, Coated DIN
FEATURES
Ultra High Speed with axial coolant hole for blind hole
2.5P application
HSS-Co COATING Most suitable for Aluminium casting. SL
SYNCHRO THCHT
For Synchro-rigid tapping system. Low helix for horizontal
tapping direction.
Recommended Tapping Speeds Depending On Materials
PO
ISO Vc (m/min)
N1 30÷100 +
N2 30÷100 +
N4 30÷60 , ST
+ 1st choice , suitable

ROLL

DIN-HFASP
TYPE: EU_076
CARBIDE
K
DCON
THL LK K
LU LS LONG
LF

HAND
TAPS
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN YMW
ISO2X(6HX) 5 5.09 SY6.0MBLDTHZ 2.5P 80 - 15 30 45 6 4.9 8 3 076 h
M6X1 EG (STI)
ISO2X(6HX) 6.8 6.85 SY8.0NBLDTHZ 2.5P 90 - 19 35 48 8 6.2 9 3 076 h
M8X1.25
ISO2X(6HX) 8.5 8.6 SY010OBLDTHZ 2.5P 100 - 23 39 53 10 8 11 3 076 h
M10X1.5
ISO2X(6HX) 10.3 10.36 SY012PBLDTHZ 2.5P 110 - 26 44 57 12 9 12 3 076 h
M12X1.75 SPECIAL
THREADS,
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock GAUGES
MF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN YMW
ISO2X(6HX) 8.8 8.85 SY010NBLDTHZ 2.5P 100 - 23 39 53 10 8 11 3 076 f
M10X1.25 THREAD
ISO2X(6HX) 10.5 10.6 SY012OBLDTHZ 2.5P 110 - 26 44 57 12 9 12 3 076 f MILLS
M12X1.5
ISO2X(6HX) 10.8 10.85 SY012NBLDTHZ 2.5P 110 - 26 44 57 12 9 12 3 076 f
M12X1.25
