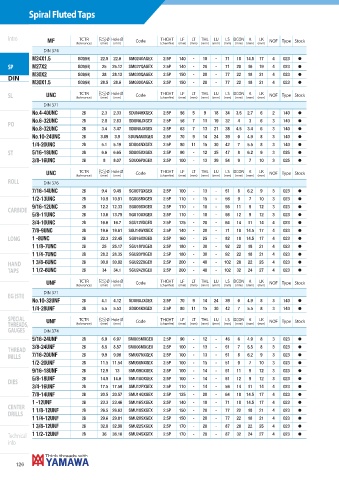

Page 128 - Yamawa_European_Catalogue_YEU23

Spiral Fluted Taps

Intro TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
MF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 374
ISO2(6H) 22.5 22.6 SM024OAGEX 2.5P 140 - 18 - 71 18 14.5 17 4 023 h
M24X1.5
SP M27X2 ISO2(6H) 25 25.12 SM027QAGEX 2.5P 140 - 20 - 71 20 16 19 4 023 h
ISO2(6H) 28 28.12 SM030QAGEX 2.5P 150 - 20 - 77 22 18 21 4 023 h
DIN M30X2
ISO2(6H) 28.5 28.6 SM030OAGEX 2.5P 150 - 20 - 77 22 18 21 4 023 h
M30X1.5
THL
LT
LF
LU
LK
TCTR
LS DCON
K
SL UNC (tolerance) (mm) Ø Hole Ø Code THCHT (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) NOF Type Stock
(chamfer)
(mm)
DIN 371
2B 2.3 2.33 SDUN4HXGEX 2.5P 56 5 9 18 34 3.5 2.7 6 2 140 h
No.4-40UNC
2B 2.8 2.83 SDUN6JXGEX 2.5P 56 7 11 19 32 4 3 6 3 140 h
PO No.6-32UNC
2B 3.4 3.47 SDUN8JXGEX 2.5P 63 7 13 21 38 4.5 3.4 6 3 140 h
No.8-32UNC
2B 3.89 3.9 SDUNAMXGEX 2.5P 70 9 14 24 39 6 4.9 8 3 140 h
No.10-24UNC
2B 5.1 5.19 SDU04NXGEX 2.5P 80 11 15 30 42 7 5.5 8 3 140 h
1/4-20UNC
ST 5/16-18UNC 2B 6.6 6.65 SDU05OXGEX 2.5P 90 - 12 35 47 8 6.2 9 3 025 h
2B 8 8.07 SDU06PXGEX 2.5P 100 - 13 39 54 9 7 10 3 025 h
3/8-16UNC
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
UNC (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
ROLL DIN 376
2B 9.4 9.45 SGU07QXGEX 2.5P 100 - 13 - 51 8 6.2 9 3 023 h
7/16-14UNC
2B 10.9 10.91 SGU08RXGEX 2.5P 110 - 15 - 56 9 7 10 3 023 h
1/2-13UNC
2B 12.2 12.33 SGU09SXGEX 2.5P 110 - 18 - 56 11 9 12 3 023 h
CARBIDE 9/16-12UNC
2B 13.6 13.75 SGU10UXGEX 2.5P 110 - 18 - 56 12 9 12 3 023 h
5/8-11UNC
2B 16.6 16.7 SGU12VXGEX 2.5P 125 - 20 - 64 14 11 14 4 023 h
3/4-10UNC
2B 19.6 19.61 SGU14WXGEX 2.5P 140 - 20 - 71 18 14.5 17 4 023 h
7/8-9UNC
LONG 1 -8UNC 2B 22.3 22.45 SGU16XXGEX 2.5P 160 - 25 - 82 18 14.5 17 4 023 h
2B 25 25.17 SGU18YXGEX 2.5P 180 - 30 - 92 22 18 21 4 023 h
1 1/8-7UNC
2B 28.2 28.35 SGU20YXGEX 2.5P 180 - 30 - 92 22 18 21 4 023 h
1 1/4-7UNC
HAND 1 3/8-6UNC 2B 30.8 30.92 SGU22ZXGEX 2.5P 200 - 40 - 102 28 22 25 4 023 h
TAPS 1 1/2-6UNC 2B 34 34.1 SGU24ZXGEX 2.5P 200 - 40 - 102 32 24 27 4 023 h
TCTR Ø Hole Ø THCHT LF LT THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
UNF Code NOF Type Stock
DIN 371
EG (STI)
2B 4.1 4.12 SDUNAJXGEX 2.5P 70 9 14 24 39 6 4.9 8 3 140 h
No.10-32UNF
2B 5.5 5.53 SDU04KXGEX 2.5P 80 11 15 30 42 7 5.5 8 3 140 h
1/4-28UNF
SPECIAL TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
THREADS, UNF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
GAUGES DIN 374
2B 6.9 6.97 SMU05MXGEX 2.5P 90 - 12 - 46 6 4.9 8 3 023 h
5/16-24UNF
2B 8.5 8.57 SMU06MXGEX 2.5P 100 - 13 - 51 7 5.5 8 3 023 h
THREAD 3/8-24UNF
MILLS 7/16-20UNF 2B 9.9 9.96 SMU07NXGEX 2.5P 100 - 13 - 51 8 6.2 9 3 023 h
2B 11.5 11.54 SMU08NXGEX 2.5P 100 - 15 - 51 9 7 10 3 023 h
1/2-20UNF
2B 12.9 13 SMU09OXGEX 2.5P 100 - 14 - 51 11 9 12 3 023 h
9/16-18UNF
2B 14.5 14.6 SMU10OXGEX 2.5P 100 - 14 - 51 12 9 12 3 023 h
DIES 5/8-18UNF
2B 17.5 17.59 SMU12PXGEX 2.5P 110 - 14 - 56 14 11 14 4 023 h
3/4-16UNF
2B 20.5 20.57 SMU14QXGEX 2.5P 125 - 20 - 64 18 14.5 17 4 023 h
7/8-14UNF
2B 23.3 23.46 SMU16SXGEX 2.5P 140 - 18 - 71 18 14.5 17 4 023 h
CENTER 1 -12UNF 2B 26.5 26.63 SMU18SXGEX 2.5P 150 - 20 - 77 22 18 21 4 023 h
DRILLS 1 1/8-12UNF
2B 29.6 29.81 SMU20SXGEX 2.5P 150 - 20 - 77 22 18 21 4 023 h
1 1/4-12UNF
2B 32.8 32.98 SMU22SXGEX 2.5P 170 - 20 - 87 28 22 25 4 023 h
1 3/8-12UNF
Technical 1 1/2-12UNF 2B 36 36.16 SMU24SXGEX 2.5P 170 - 20 - 87 32 24 27 4 023 h
