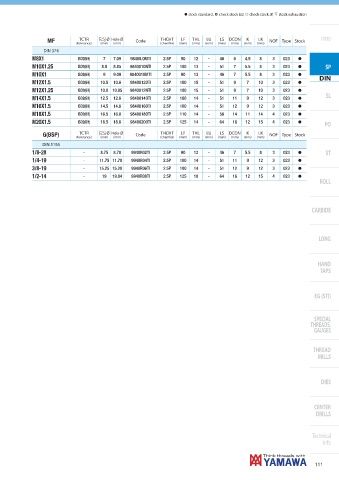

Page 113 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock Intro
MF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 374
ISO2(6H) 7 7.09 98408.0MTI 2.5P 90 12 - 46 6 4.9 8 3 023 h
M8X1
ISO2(6H) 8.8 8.85 9840010NTI 2.5P 100 13 - 51 7 5.5 8 3 023 h SP
M10X1.25
ISO2(6H) 9 9.09 9840010MTI 2.5P 90 13 - 46 7 5.5 8 3 023 h
DIN
M10X1
ISO2(6H) 10.5 10.6 9840012OTI 2.5P 100 15 - 51 9 7 10 3 023 h
M12X1.5
ISO2(6H) 10.8 10.85 9840012NTI 2.5P 100 15 - 51 9 7 10 3 023 h
M12X1.25
SL
ISO2(6H) 12.5 12.6 9840014OTI 2.5P 100 14 - 51 11 9 12 3 023 h
M14X1.5
ISO2(6H) 14.5 14.6 9840016OTI 2.5P 100 14 - 51 12 9 12 3 023 h
M16X1.5
ISO2(6H) 16.5 16.6 9840018OTI 2.5P 110 14 - 56 14 11 14 4 023 h
M18X1.5
ISO2(6H) 18.5 18.6 9840020OTI 2.5P 125 14 - 64 16 12 15 4 023 h
M20X1.5 PO
TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock
G(BSP) (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 5156
- 8.75 8.78 9940R02TI 2.5P 90 12 - 46 7 5.5 8 3 023 h ST
1/8-28
- 11.75 11.78 9940R04TI 2.5P 100 14 - 51 11 9 12 3 023 h
1/4-19
- 15.25 15.28 9940R06TI 2.5P 100 14 - 51 12 9 12 3 023 h
3/8-19
- 19 19.04 9940R08TI 2.5P 125 18 - 64 16 12 15 4 023 h
1/2-14
