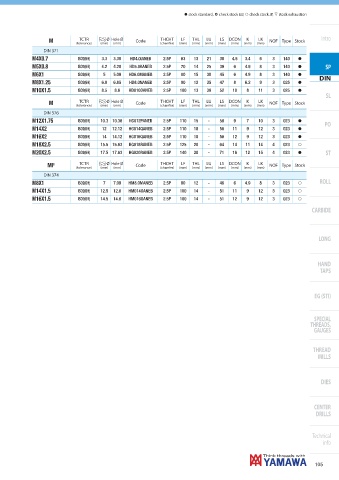

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock Intro
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 371
ISO2(6H) 3.3 3.38 HD4.0IANEB 2.5P 63 13 21 38 4.5 3.4 6 3 140 h
M4X0.7
ISO2(6H) 4.2 4.28 HD5.0KANEB 2.5P 70 14 25 39 6 4.9 8 3 140 h SP
M5X0.8
ISO2(6H) 5 5.09 HD6.0MANEB 2.5P 80 15 30 45 6 4.9 8 3 140 h
DIN
M6X1
ISO2(6H) 6.8 6.85 HD8.0NANEB 2.5P 90 12 35 47 8 6.2 9 3 025 h
M8X1.25
ISO2(6H) 8.5 8.6 HD010OANEB 2.5P 100 13 39 52 10 8 11 3 025 h
M10X1.5
SL
TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 376
ISO2(6H) 10.3 10.36 HG012PANEB 2.5P 110 15 - 56 9 7 10 3 023 h
PO
M12X1.75
ISO2(6H) 12 12.12 HG014QANEB 2.5P 110 18 - 56 11 9 12 3 023 h
M14X2
ISO2(6H) 14 14.12 HG016QANEB 2.5P 110 18 - 56 12 9 12 3 023 h
M16X2
ISO2(6H) 15.5 15.63 HG018RANEB 2.5P 125 20 - 64 14 11 14 4 023 f
M18X2.5
ISO2(6H) 17.5 17.63 HG020RANEB 2.5P 140 20 - 71 16 12 15 4 023 h ST
M20X2.5
TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
MF
DIN 374
ISO2(6H) 7 7.09 HM8.0MANEB 2.5P 90 12 - 46 6 4.9 8 3 023 f ROLL
M8X1
ISO2(6H) 12.5 12.6 HM014OANEB 2.5P 100 14 - 51 11 9 12 3 023 f
M14X1.5
ISO2(6H) 14.5 14.6 HM016OANEB 2.5P 100 14 - 51 12 9 12 3 023 f
M16X1.5
