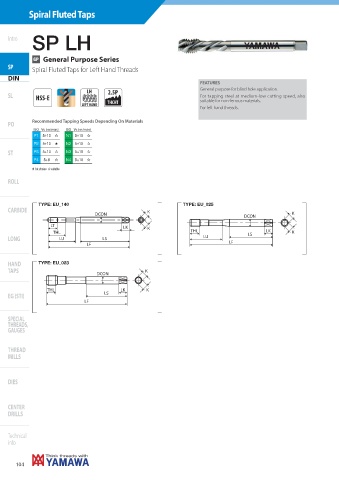

Spiral Fluted Taps

SP LH
Intro

GP General Purpose Series
SP
Spiral Fluted Taps for Left Hand Threads
DIN
FEATURES
General purpose for blind hole application.
LH 2.5P
SL HSS-E For tapping steel at medium-low cutting speed, also
THCHT suitable for non-ferrous materials.
LEFT HAND
For left hand threads.
Recommended Tapping Speeds Depending On Materials
PO
ISO Vc (m/min) ISO Vc (m/min)
P1 5÷10 , N1 5÷10 ,
P2 5÷10 + N2 5÷10 ,
ST P3 5÷10 , N3 5÷10 ,
P4 5÷8 , N4 5÷10 ,
+ 1st choice , suitable
ROLL

DIN-SP LH
TYPE: EU_140 TYPE: EU_025
CARBIDE K
DCON DCON K
LT LK K
THL THL LS LK K
LONG LU LS LU
LF LF

HAND TYPE: EU_023
TAPS DCON K

THL LK K
EG (STI) LS
LF
