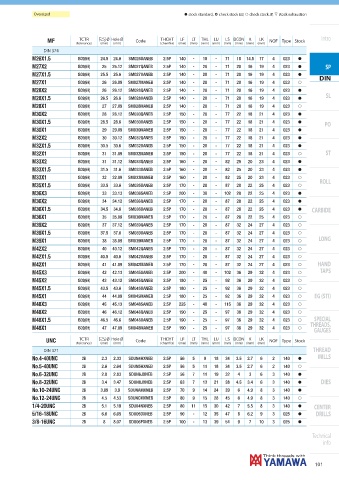

P. 103
Oversized h stock standard, ) check stock EU, f check stock JP, m stock exhaustion
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
MF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 374
ISO2(6H) 24.5 24.6 SM026OANEB 2.5P 140 - 18 - 71 18 14.5 17 4 023 h
M26X1.5
ISO2(6H) 25 25.12 SM027QANEB 2.5P 140 - 20 - 71 20 16 19 4 023 h SP
M27X2
ISO2(6H) 25.5 25.6 SM027OANEB 2.5P 140 - 20 - 71 20 16 19 4 023 h
DIN
M27X1.5
ISO2(6H) 26 26.09 SM027MANEB 2.5P 140 - 20 - 71 20 16 19 4 023 f
M27X1
ISO2(6H) 26 26.12 SM028QANEB 2.5P 140 - 20 - 71 20 16 19 4 023 h
M28X2
SL
ISO2(6H) 26.5 26.6 SM028OANEB 2.5P 140 - 20 - 71 20 16 19 4 023 h
M28X1.5
ISO2(6H) 27 27.09 SM028MANEB 2.5P 140 - 20 - 71 20 16 19 4 023 f
M28X1
ISO2(6H) 28 28.12 SM030QANEB 2.5P 150 - 20 - 77 22 18 21 4 023 h
M30X2
ISO2(6H) 28.5 28.6 SM030OANEB 2.5P 150 - 20 - 77 22 18 21 4 023 h
M30X1.5 PO
ISO2(6H) 29 29.09 SM030MANEB 2.5P 150 - 20 - 77 22 18 21 4 023 h
M30X1
ISO2(6H) 30 30.12 SM032QANEB 2.5P 150 - 20 - 77 22 18 21 4 023 h
M32X2
ISO2(6H) 30.5 30.6 SM032OANEB 2.5P 150 - 20 - 77 22 18 21 4 023 h
M32X1.5
ISO2(6H) 31 31.09 SM032MANEB 2.5P 150 - 20 - 77 22 18 21 4 023 f ST
M32X1
ISO2(6H) 31 31.12 SM033QANEB 2.5P 160 - 20 - 82 25 20 23 4 023 h
M33X2
ISO2(6H) 31.5 31.6 SM033OANEB 2.5P 160 - 20 - 82 25 20 23 4 023 h
M33X1.5
ISO2(6H) 32 32.09 SM033MANEB 2.5P 160 - 20 - 82 25 20 23 4 023 f
ROLL
M33X1
ISO2(6H) 33.5 33.6 SM035OANEB 2.5P 170 - 20 - 87 28 22 25 4 023 f
M35X1.5
ISO2(6H) 33 33.13 SM036SANEB 2.5P 200 - 30 - 102 28 22 25 4 023 h
M36X3
ISO2(6H) 34 34.12 SM036QANEB 2.5P 170 - 20 - 87 28 22 25 4 023 h
M36X2
ISO2(6H) 34.5 34.6 SM036OANEB 2.5P 170 - 20 - 87 28 22 25 4 023 h
M36X1.5 CARBIDE
ISO2(6H) 35 35.09 SM036MANEB 2.5P 170 - 20 - 87 28 22 25 4 023 f
M36X1
ISO2(6H) 37 37.12 SM039QANEB 2.5P 170 - 20 - 87 32 24 27 4 023 f
M39X2
ISO2(6H) 37.5 37.6 SM039OANEB 2.5P 170 - 20 - 87 32 24 27 4 023 f
M39X1.5
LONG
ISO2(6H) 38 38.09 SM039MANEB 2.5P 170 - 20 - 87 32 24 27 4 023 f
M39X1
ISO2(6H) 40 40.12 SM042QANEB 2.5P 170 - 20 - 87 32 24 27 4 023 f
M42X2
ISO2(6H) 40.5 40.6 SM042OANEB 2.5P 170 - 20 - 87 32 24 27 4 023 f
M42X1.5
ISO2(6H) 41 41.09 SM042MANEB 2.5P 170 - 20 - 87 32 24 27 4 023 f HAND
M42X1
ISO2(6H) 42 42.13 SM045SANEB 2.5P 200 - 40 - 102 36 29 32 4 023 f TAPS
M45X3
ISO2(6H) 43 43.12 SM045QANEB 2.5P 180 - 25 - 92 36 29 32 4 023 f
M45X2
ISO2(6H) 43.5 43.6 SM045OANEB 2.5P 180 - 25 - 92 36 29 32 4 023 f
M45X1.5
ISO2(6H) 44 44.09 SM045MANEB 2.5P 180 - 25 - 92 36 29 32 4 023 f EG (STI)
M45X1
ISO2(6H) 45 45.13 SM048SANEB 2.5P 225 - 40 - 115 36 29 32 4 023 f
M48X3
ISO2(6H) 46 46.12 SM048QANEB 2.5P 190 - 25 - 97 36 29 32 4 023 f
M48X2
ISO2(6H) 46.5 46.6 SM048OANEB 2.5P 190 - 25 - 97 36 29 32 4 023 f SPECIAL
THREADS,
M48X1.5
ISO2(6H) 47 47.09 SM048MANEB 2.5P 190 - 25 - 97 36 29 32 4 023 f
GAUGES
M48X1
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock
UNC (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 371 THREAD
2B 2.3 2.33 SDUN4HXNEB 2.5P 56 5 9 18 34 3.5 2.7 6 2 140 h MILLS
No.4-40UNC
2B 2.6 2.64 SDUN5HXNEB 2.5P 56 5 11 18 34 3.5 2.7 6 2 140 f
No.5-40UNC
2B 2.8 2.83 SDUN6JXNEB 2.5P 56 7 11 19 32 4 3 6 3 140 h
No.6-32UNC
2B 3.4 3.47 SDUN8JXNEB 2.5P 63 7 13 21 38 4.5 3.4 6 3 140 h DIES
No.8-32UNC
2B 3.89 3.9 SDUNAMXNEB 2.5P 70 9 14 24 39 6 4.9 8 3 140 h
No.10-24UNC
2B 4.5 4.53 SDUNCMXNEB 2.5P 80 9 15 28 45 6 4.9 8 3 140 f
No.12-24UNC
2B 5.1 5.19 SDU04NXNEB 2.5P 80 11 15 30 42 7 5.5 8 3 140 h CENTER
1/4-20UNC
2B 6.6 6.65 SDU05OXNEB 2.5P 90 - 12 35 47 8 6.2 9 3 025 h DRILLS
5/16-18UNC
2B 8 8.07 SDU06PXNEB 2.5P 100 - 13 39 54 9 7 10 3 025 h
3/8-16UNC
