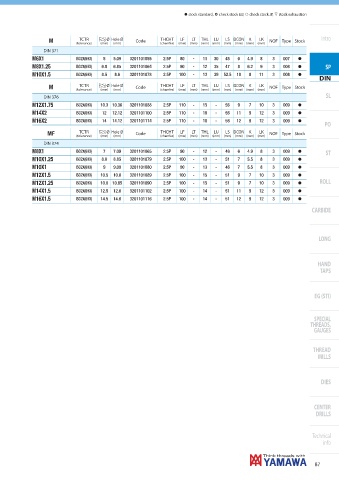

Page 89 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 371
ISO2X(6HX) 5 5.09 3201101055 2.5P 80 - 11 30 45 6 4.9 8 3 007 h
M6X1
ISO2X(6HX) 6.8 6.85 3201101064 2.5P 90 - 12 35 47 8 6.2 9 3 008 h SP
M8X1.25
ISO2X(6HX) 8.5 8.6 3201101078 2.5P 100 - 13 39 52.5 10 8 11 3 008 h
DIN
M10X1.5
TCTR Ø Hole Ø THCHT LF LT THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
M Code NOF Type Stock
DIN 376 SL
ISO2X(6HX) 10.3 10.36 3201101088 2.5P 110 - 15 - 56 9 7 10 3 009 h
M12X1.75
ISO2X(6HX) 12 12.12 3201101100 2.5P 110 - 18 - 56 11 9 12 3 009 h
M14X2
ISO2X(6HX) 14 14.12 3201101114 2.5P 110 - 18 - 56 12 9 12 3 009 h
PO
M16X2
TCTR Ø Hole Ø THCHT LF LT THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
MF Code NOF Type Stock
DIN 374
ISO2X(6HX) 7 7.09 3201101065 2.5P 90 - 12 - 46 6 4.9 8 3 009 h
M8X1 ST
ISO2X(6HX) 8.8 8.85 3201101079 2.5P 100 - 13 - 51 7 5.5 8 3 009 h
M10X1.25
ISO2X(6HX) 9 9.09 3201101080 2.5P 90 - 13 - 46 7 5.5 8 3 009 h
M10X1
ISO2X(6HX) 10.5 10.6 3201101089 2.5P 100 - 15 - 51 9 7 10 3 009 h
M12X1.5
ISO2X(6HX) 10.8 10.85 3201101090 2.5P 100 - 15 - 51 9 7 10 3 009 h ROLL
M12X1.25
ISO2X(6HX) 12.5 12.6 3201101102 2.5P 100 - 14 - 51 11 9 12 3 009 h
M14X1.5
ISO2X(6HX) 14.5 14.6 3201101116 2.5P 100 - 14 - 51 12 9 12 3 009 h
M16X1.5
