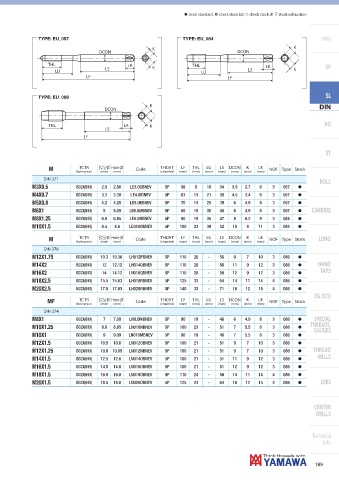

Page 191 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TYPE: EU_057 TYPE: EU_084 Intro
K K
DCON DCON

THL LK K THL LK SP
LU LS LU LS K
LF LF

SL
TYPE: EU_086
K DIN
DCON

THL LK K PO
LS
LF

ST

TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 371
ROLL
ISO2X(6HX) 2.5 2.56 LE3.0GBNEV 5P 56 9 18 34 3.5 2.7 6 3 057 h
M3X0.5
ISO2X(6HX) 3.3 3.38 LE4.0IBNEV 5P 63 13 21 38 4.5 3.4 6 3 057 h
M4X0.7
ISO2X(6HX) 4.2 4.28 LE5.0KBNEV 5P 70 14 25 39 6 4.9 8 3 057 h
M5X0.8
ISO2X(6HX) 5 5.09 LE6.0MBNEV 5P 80 15 30 45 6 4.9 8 3 057 h CARBIDE
M6X1
ISO2X(6HX) 6.8 6.85 LE8.0NBNEV 5P 90 19 35 47 8 6.2 9 3 084 h
M8X1.25
ISO2X(6HX) 8.5 8.6 LE010OBNEV 5P 100 23 39 52 10 8 11 3 084 h
M10X1.5
TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock LONG
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 376
ISO2X(6HX) 10.3 10.36 LH012PBNEV 5P 110 26 - 56 9 7 10 3 086 h
M12X1.75
ISO2X(6HX) 12 12.12 LH014QBNEV 5P 110 26 - 56 11 9 12 3 086 h HAND
M14X2
TAPS
ISO2X(6HX) 14 14.12 LH016QBNEV 5P 110 26 - 56 12 9 12 3 086 h
M16X2
ISO2X(6HX) 15.5 15.63 LH018RBNEV 5P 125 33 - 64 14 11 14 4 086 h
M18X2.5
ISO2X(6HX) 17.5 17.63 LH020RBNEV 5P 140 33 - 71 16 12 15 4 086 h
M20X2.5
EG (STI)
TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock
MF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 374
ISO2X(6HX) 7 7.09 LN8.0MBNEV 5P 90 19 - 46 6 4.9 8 3 086 h SPECIAL
M8X1
THREADS,
ISO2X(6HX) 8.8 8.85 LN010NBNEV 5P 100 23 - 51 7 5.5 8 3 086 h
GAUGES
M10X1.25
ISO2X(6HX) 9 9.09 LN010MBNEV 5P 90 19 - 46 7 5.5 8 3 086 h
M10X1
ISO2X(6HX) 10.5 10.6 LN012OBNEV 5P 100 21 - 51 9 7 10 3 086 h
M12X1.5
ISO2X(6HX) 10.8 10.85 LN012NBNEV 5P 100 21 - 51 9 7 10 3 086 h THREAD
M12X1.25
ISO2X(6HX) 12.5 12.6 LN014OBNEV 5P 100 21 - 51 11 9 12 3 086 h MILLS
M14X1.5
ISO2X(6HX) 14.5 14.6 LN016OBNEV 5P 100 21 - 51 12 9 12 3 086 h
M16X1.5
ISO2X(6HX) 16.5 16.6 LN018OBNEV 5P 110 24 - 56 14 11 14 4 086 h
M18X1.5
ISO2X(6HX) 18.5 18.6 LN020OBNEV 5P 125 24 - 64 16 12 15 4 086 h DIES
M20X1.5
CENTER
DRILLS
