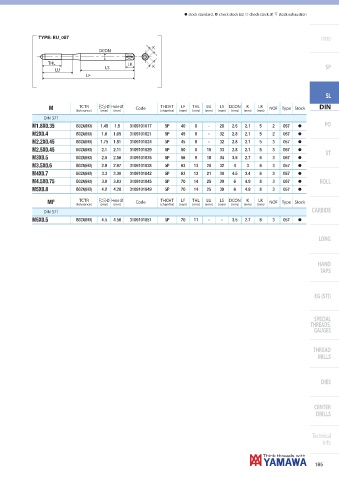

Page 187 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TYPE: EU_057 Intro
K
DCON
THL LK
LS K SP
LU
LF

SL

TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock DIN
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 371
ISO2X(6HX) 1.45 1.5 3109101017 5P 40 8 - 28 2.5 2.1 5 2 057 h PO
M1.8X0.35
ISO2X(6HX) 1.6 1.65 3109101021 5P 45 8 - 32 2.8 2.1 5 2 057 h
M2X0.4
ISO2X(6HX) 1.75 1.81 3109101024 5P 45 9 - 32 2.8 2.1 5 3 057 h
M2.2X0.45
ISO2X(6HX) 2.1 2.11 3109101029 5P 50 8 15 33 2.8 2.1 5 3 057 h
ST
M2.5X0.45
ISO2X(6HX) 2.5 2.56 3109101035 5P 56 9 18 34 3.5 2.7 6 3 057 h
M3X0.5
ISO2X(6HX) 2.9 2.97 3109101038 5P 63 13 20 32 4 3 6 3 057 h
M3.5X0.6
ISO2X(6HX) 3.3 3.38 3109101042 5P 63 13 21 38 4.5 3.4 6 3 057 h
M4X0.7
ISO2X(6HX) 3.8 3.83 3109101045 5P 70 14 25 39 6 4.9 8 3 057 h ROLL
M4.5X0.75
ISO2X(6HX) 4.2 4.28 3109101049 5P 70 14 25 39 6 4.9 8 3 057 h
M5X0.8
TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock
MF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 371 CARBIDE
ISO2X(6HX) 4.5 4.56 3109101051 5P 70 11 - - 3.5 2.7 6 3 057 h
M5X0.5
