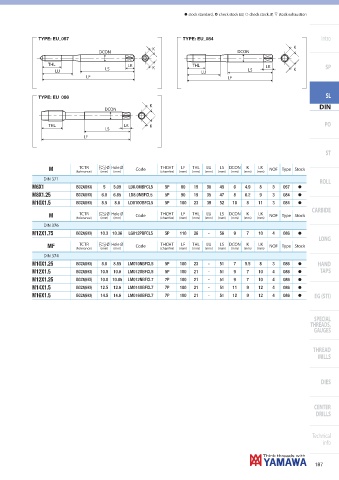

Page 189 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TYPE: EU_057 TYPE: EU_084 Intro
K K
DCON DCON

THL LK K THL LK SP
LU LS LU LS K
LF LF

SL
TYPE: EU_086
K DIN
DCON

THL LK K PO
LS
LF

ST

TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 371
ROLL
ISO2X(6HX) 5 5.09 LD6.0MBFCL5 5P 80 15 30 45 6 4.9 8 3 057 h
M6X1
ISO2X(6HX) 6.8 6.85 LD8.0NBFCL5 5P 90 19 35 47 8 6.2 9 3 084 h
M8X1.25
ISO2X(6HX) 8.5 8.6 LD010OBFCL5 5P 100 23 39 52 10 8 11 3 084 h
M10X1.5
CARBIDE
TCTR Ø Hole Ø THCHT LF THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
M Code NOF Type Stock
DIN 376
ISO2X(6HX) 10.3 10.36 LG012PBFCL5 5P 110 26 - 56 9 7 10 4 086 h
M12X1.75
LONG
TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock
MF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 374
ISO2X(6HX) 8.8 8.85 LM010NBFCL5 5P 100 23 - 51 7 5.5 8 3 086 h HAND
M10X1.25
ISO2X(6HX) 10.5 10.6 LM012OBFCL5 5P 100 21 - 51 9 7 10 4 086 h TAPS
M12X1.5
ISO2X(6HX) 10.8 10.85 LM012NBFCL7 7P 100 21 - 51 9 7 10 4 086 h
M12X1.25
ISO2X(6HX) 12.5 12.6 LM014OBFCL7 7P 100 21 - 51 11 9 12 4 086 h
M14X1.5
ISO2X(6HX) 14.5 14.6 LM016OBFCL7 7P 100 21 - 51 12 9 12 4 086 h EG (STI)
M16X1.5
