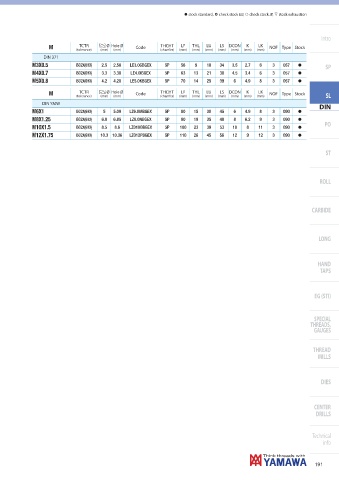

Page 193 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

Intro
TCTR Ø Hole Ø THCHT LF THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
M Code NOF Type Stock
DIN 371
ISO2X(6HX) 2.5 2.56 LE3.0GBGEX 5P 56 9 18 34 3.5 2.7 6 3 057 h
M3X0.5 SP
ISO2X(6HX) 3.3 3.38 LE4.0IBGEX 5P 63 13 21 38 4.5 3.4 6 3 057 h
M4X0.7
ISO2X(6HX) 4.2 4.28 LE5.0KBGEX 5P 70 14 25 39 6 4.9 8 3 057 h
M5X0.8
TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) SL
DIN YMW
DIN
ISO2X(6HX) 5 5.09 LZ6.0MBGEX 5P 80 15 30 45 6 4.9 8 3 090 h
M6X1
ISO2X(6HX) 6.8 6.85 LZ8.0NBGEX 5P 90 19 35 48 8 6.2 9 3 090 h
M8X1.25
PO
ISO2X(6HX) 8.5 8.6 LZ010OBGEX 5P 100 23 39 53 10 8 11 3 090 h
M10X1.5
ISO2X(6HX) 10.3 10.36 LZ012PBGEX 5P 110 26 45 56 12 9 12 3 090 h
M12X1.75
