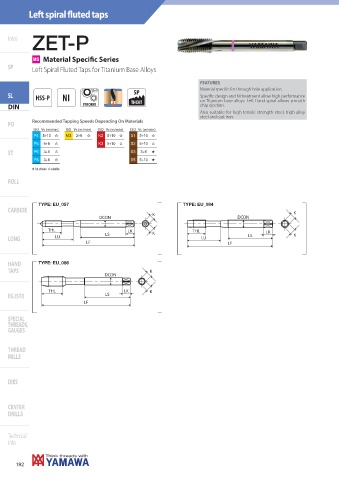

Page 194 - Yamawa_European_Catalogue_YEU23

Left spiral fluted taps

ZET-P
Intro

MS Material Specific Series
SP
Left Spiral Fluted Taps for Titanium Base Alloys

FEATURES
Material specific for through hole application.
5P
SL HSS-P NI Specific design and NI treatment allow high performance
SYNCHRO THCHT on Titanium base alloys. Left Hand spiral allows smooth
chip ejection.
DIN
Also suitable for high tensile strength steel, high alloy
steel and cast iron.
Recommended Tapping Speeds Depending On Materials
PO
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
P4 5÷10 , M3 3÷6 , K2 5÷10 , S1 5÷10 ,
P5 5÷8 , K3 5÷10 , S2 5÷10 ,
ST P6 3÷6 , S3 3÷6 +
P8 3÷6 , S5 5÷10 +
+ 1st choice , suitable
ROLL

DIN-ZET-P
TYPE: EU_057 TYPE: EU_084
CARBIDE K
DCON K DCON

THL LK K THL LK
LONG LU LS LU LS K
LF LF

HAND TYPE: EU_086
TAPS K
DCON

THL LK K
EG (STI) LS
LF
