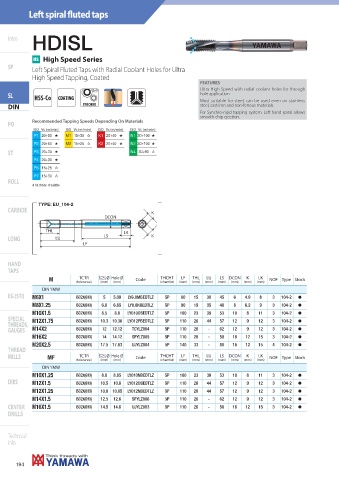

Page 196 - Yamawa_European_Catalogue_YEU23

Left spiral fluted taps

HDISL
Intro

HS High Speed Series
SP
Left Spiral Fluted Taps with Radial Coolant Holes for Ultra
High Speed Tapping, Coated
FEATURES
Ultra High Speed with radial coolant holes for through
SL HSS-Co COATING hole application
SYNCHRO Most suitable for steel, can be used even on stainless
steel, cast iron and non-ferrous materials.
DIN
For Synchro-rigid tapping system. Left hand spiral allows
smooth chip ejection.
Recommended Tapping Speeds Depending On Materials
PO
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
P1 20÷50 + M1 15÷30 , K1 20÷40 + N1 30÷100 +
P2 20÷50 + M2 15÷25 , K2 20÷40 + N2 30÷100 +
ST P3 20÷30 + N4 30÷60 ,
P4 20÷30 +
P5 15÷25 ,
P7 15÷30 ,
ROLL
+ 1st choice , suitable
DIN-HDISL
TYPE: EU_104-2
CARBIDE K
DCON

THL LK
LS K
LONG LU
LF

HAND
TAPS
TCTR Ø Hole Ø THCHT LF THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
M Code NOF Type Stock
DIN YMW
EG (STI) ISO2X(6HX) 5 5.09 LY6.0MBEDTLZ 5P 80 15 30 45 6 4.9 8 3 104-2 h
M6X1
ISO2X(6HX) 6.8 6.85 LY8.0NBEDTLZ 5P 90 19 35 48 8 6.2 9 3 104-2 h
M8X1.25
ISO2X(6HX) 8.5 8.6 LY010OBEDTLZ 5P 100 23 39 53 10 8 11 3 104-2 h
M10X1.5
SPECIAL ISO2X(6HX) 10.3 10.36 LY012PBEDTLZ 5P 110 26 44 57 12 9 12 3 104-2 h
THREADS, M12X1.75
GAUGES M14X2 ISO2X(6HX) 12 12.12 TCYLZ004 5P 110 26 - 62 12 9 12 3 104-2 h
ISO2X(6HX) 14 14.12 SFYLZ005 5P 110 26 - 58 16 12 15 3 104-2 h
M16X2
ISO2X(6HX) 17.5 17.63 UJYLZ004 5P 140 33 - 80 16 12 15 4 104-2 h
M20X2.5
THREAD
MILLS TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
MF
DIN YMW
ISO2X(6HX) 8.8 8.85 LY010NBEDTLZ 5P 100 23 39 53 10 8 11 3 104-2 h
M10X1.25
DIES ISO2X(6HX) 10.5 10.6 LY012OBEDTLZ 5P 110 26 44 57 12 9 12 3 104-2 h
M12X1.5
ISO2X(6HX) 10.8 10.85 LY012NBEDTLZ 5P 110 26 44 57 12 9 12 3 104-2 h
M12X1.25
ISO2X(6HX) 12.5 12.6 SFYLZ006 5P 110 26 - 62 12 9 12 3 104-2 h
M14X1.5
CENTER M16X1.5 ISO2X(6HX) 14.5 14.6 UJYLZ003 5P 110 26 - 58 16 12 15 3 104-2 h
DRILLS
